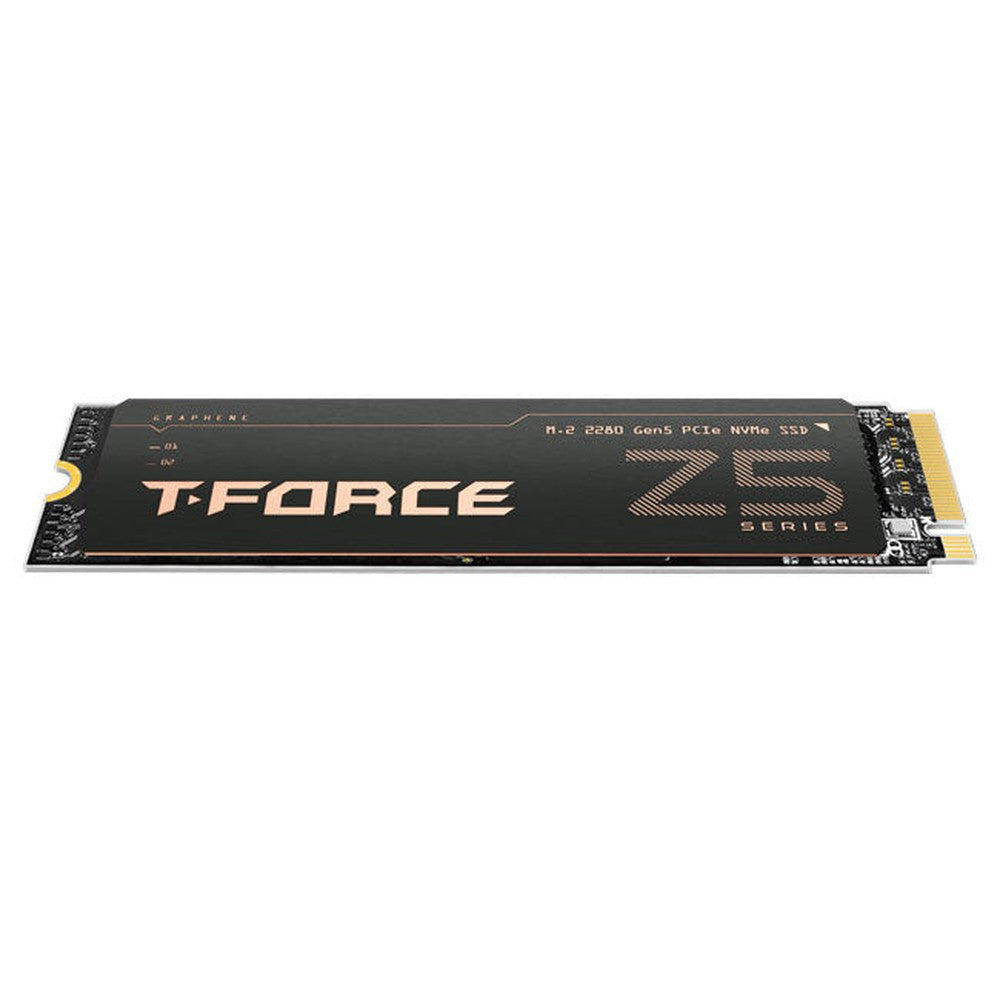

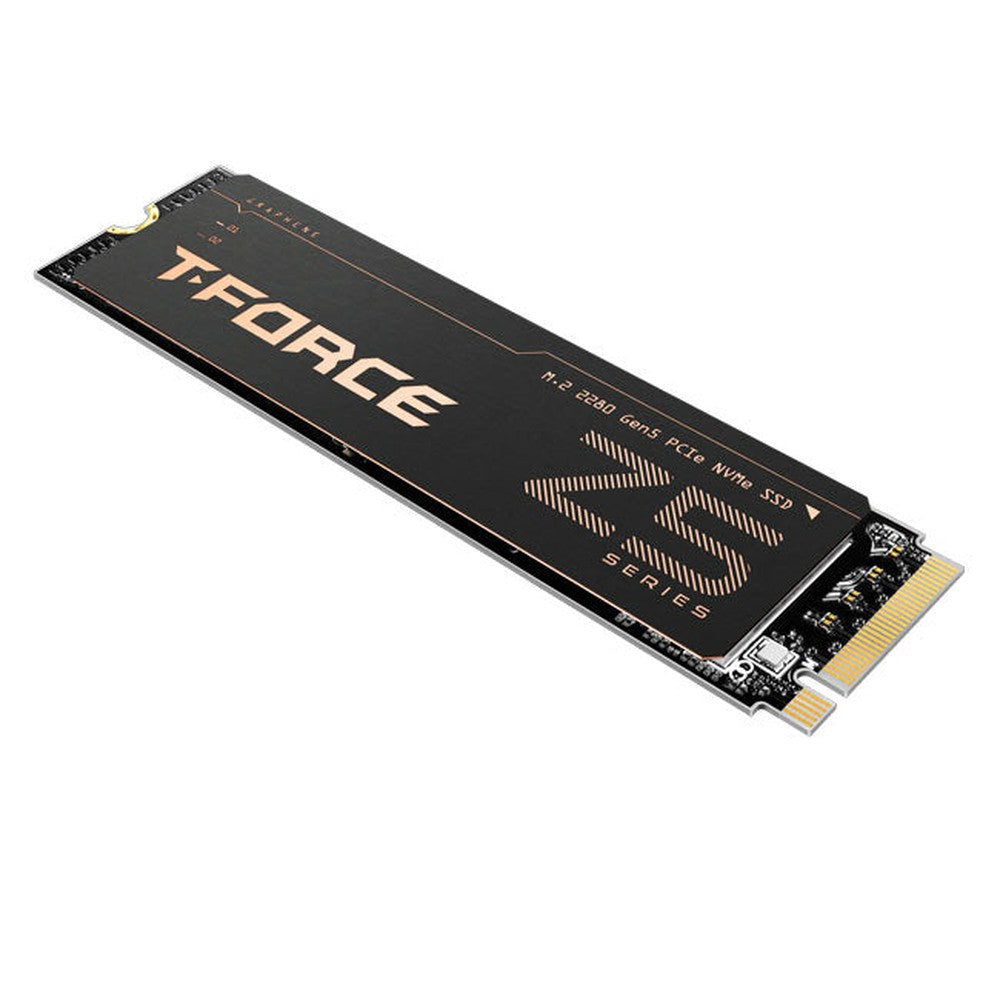

Z540 M.2 PCIe 5.0 SSD
T-FORCE Z540 M.2 PCIe 5.0 SSD adopts the latest PCIe Gen5x4 and supports NVMe 2.0 protocol. It offers continuous read/write speeds of 12,400 and 11,800 MB/s for you to unleash impeccable speed in launching games and applications. The ultra-thin graphene heatsink is made with 100% recyclable graphene of exceptional diagonal conductivity, which allows heat at the heat source to be rapidly transferred away horizontally and can be complementary to any original motherboard heatsink. The heat dissipation performance of T-FORCE Z540 M.2 PCIe 5.0 SSD is better than the original motherboard heatsink alone,
making it the best heat dissipation solution for original motherboard heatsinks.
- Primary functions and features
- Astonishing new-generation impeccable speed to unleash gaming performance
- The miraculous force of graphene
- The best heat dissipation solution
- Intelligent thermal conditioning
- Concrete actions to safeguard Earth
- Patented S.M.A.R.T. monitoring master
- Quality service for user assurance
- Patented graphene heatsink
- US invention patent (certificate no.: US11051392B2)
- Taiwan invention patent (certificate no.: I703921)
- China utility patent (certificate no.: CN 211019739 U)
- S.M.A.R.T. patented software
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Capacity | 1TB |
| Specifications | Form Factor | M.2 2280 |
| Specifications | Humidity | RH 90% under 40°C (operational) |
| Specifications | Interface | PCIe Gen5x4 with NVMe |
| Specifications | IOPS | up to 1300K/1400K IOPS Max |
| Specifications | MTBF | 1,700,000 Hours |
| Specifications | Product Family | Z540 |
| Specifications | Read/Write | up to 11,700/9,500 MB/s |
| Specifications | Shock | 1500G/0.5ms |
| Specifications | Vibration | 80Hz~2000Hz/20G |
| Specifications | Warranty | 5 Years Limited |
| Specifications | Weight | 13g |
