Feature-rich functionality
The Z4 is ahead of its time with more standard features than any other single processor HP workstation. With multiple configuration options, you can choose the perfect blend of components that meet your performance requirements.
Visualization powerhouse
Visualize your project anytime with the power to move seamlessly between 3D CAD, rendering and simulation applications. The Z4 can easily handle tasks that require high frequency processing, multiple cores and high-powered GPUs for an optimized design process.
HP's most secure workstations
Advanced security features come standard on every Z4. Rest assured your device, identity and data are safe with security software like HP Client Security Suite Gen3 and HP Sure Start Gen3 featuring a self-healing BIOS.
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Accessory | |
| Specifications | Card Reader | |
| Specifications | Chipset | Intel® C422 |
| Specifications | Dimensions | 16.9 x 46.5 x 44.5 cm |
| Specifications | Drive Bay | Two 2.5" or 3.5" |
| Specifications | Expansion Slot | 2 PCIe 3 x4, 2 M.2 PCIe 3 x4, 1 PCIe x8, 2 PCIe x16 (for Intel® Xeon® W configurations); 2 PCIe 3 x4, 1 M.2 PCIe 3 x4, 1 PCIe x8, 2 PCIe x16 (for Intel® Core i9-X and Core i7-9800X configurations); 2 PCIe 3 x4, 1 M.2 PCIe 3 x4, 1 PCIe x8 (mechanical only), 1 PCIe x16 (x8 electrical), 1 PCIe x16 (for other Intel® Core i7-X configurations) |
| Specifications | Form Factor | Tower |

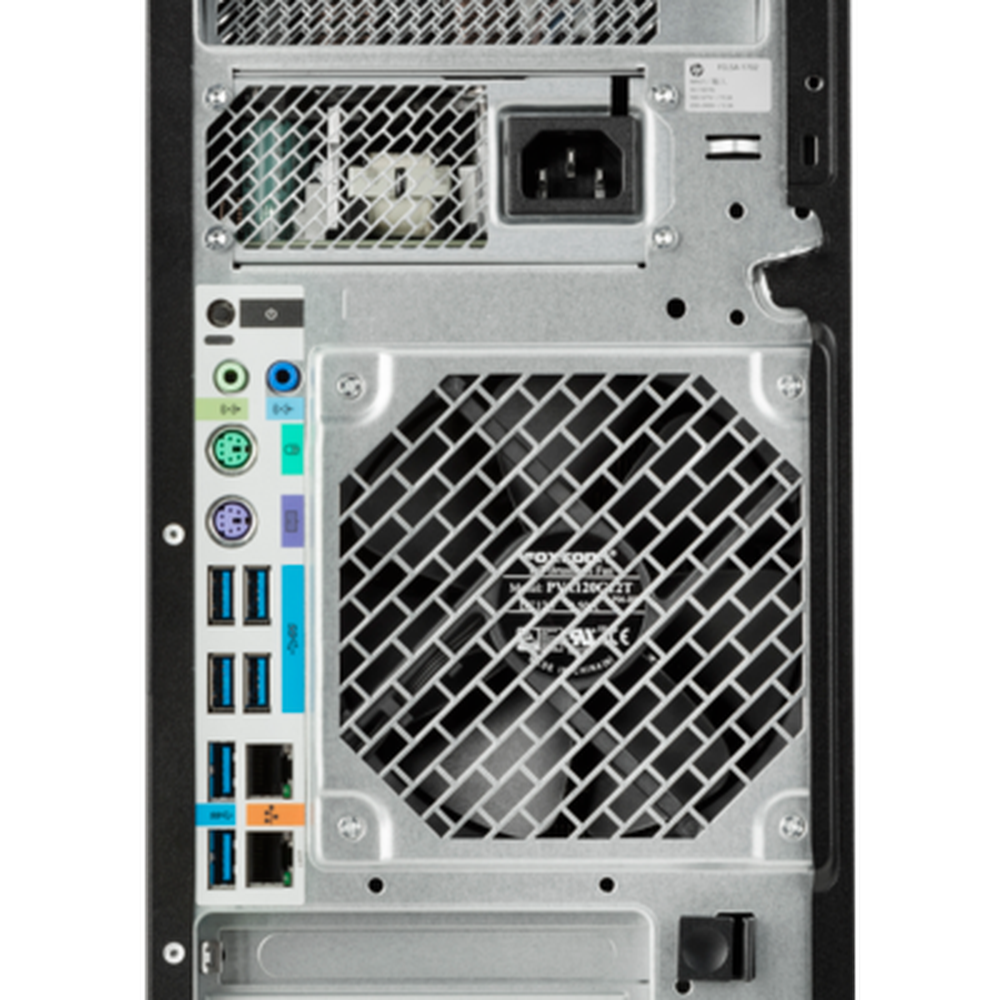

| Specifications | Front/Rear Ports | 1 audio-in; 1 audio-out; 1 PS/2 keyboard port; 1 PS/2 mouse port; 1 serial; 2 RJ-45 (1 GbE); 6 USB 3.1 Gen 1; 1 headset connector; 2 USB 3.1 Gen 2 Type-C; 2 USB 3.1 Gen1 (1 charging); 1 headset connector; 4 USB 3.1 (1 charging) - (The Intel® Core X-Series processor configurations only have one RJ45 port and 5 Rear USB 3.1 Gen 1 ports available. The serial port is optional.) |
| Specifications | Graphics | NVIDIA RTX? A2000 (6 GB GDDR6 dedicated) |
| Specifications | LAN | Integrated Intel® I219-LM PCIe® GbE |
| Specifications | Memory | 32 GB DDR4-2933 MHz ECC RAM (2 x 16 GB) |
| Specifications | Operating System | Windows 10 Pro 64 |
| Specifications | Optical Drive | No Included ODD |
| Specifications | Power Supply | 1000 W internal power supply, up to 90% efficiency, active PFC |
| Specifications | Processor | Intel® Xeon® W-2235 (3.8 GHz base frequency, up to 4.6 GHz with Intel® Turbo Boost Technology, 8.25 MB L3 cache, 6 cores) |
| Specifications | Product Family | HP |
| Specifications | Storage Capacity | 1 TB HP Z Turbo Drive PCIe® NVMe SSD + 2 TB 7200 rpm SATA |
| Specifications | Storage Type | 1 TB HP Z Turbo Drive PCIe® NVMe SSD + 2 TB 7200 rpm SATA |
| Specifications | Warranty | 3 year (3/3/3) limited warranty includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
| Specifications | Weight | Starting at 10.2 kg |
| Specifications | Wireless | No |
