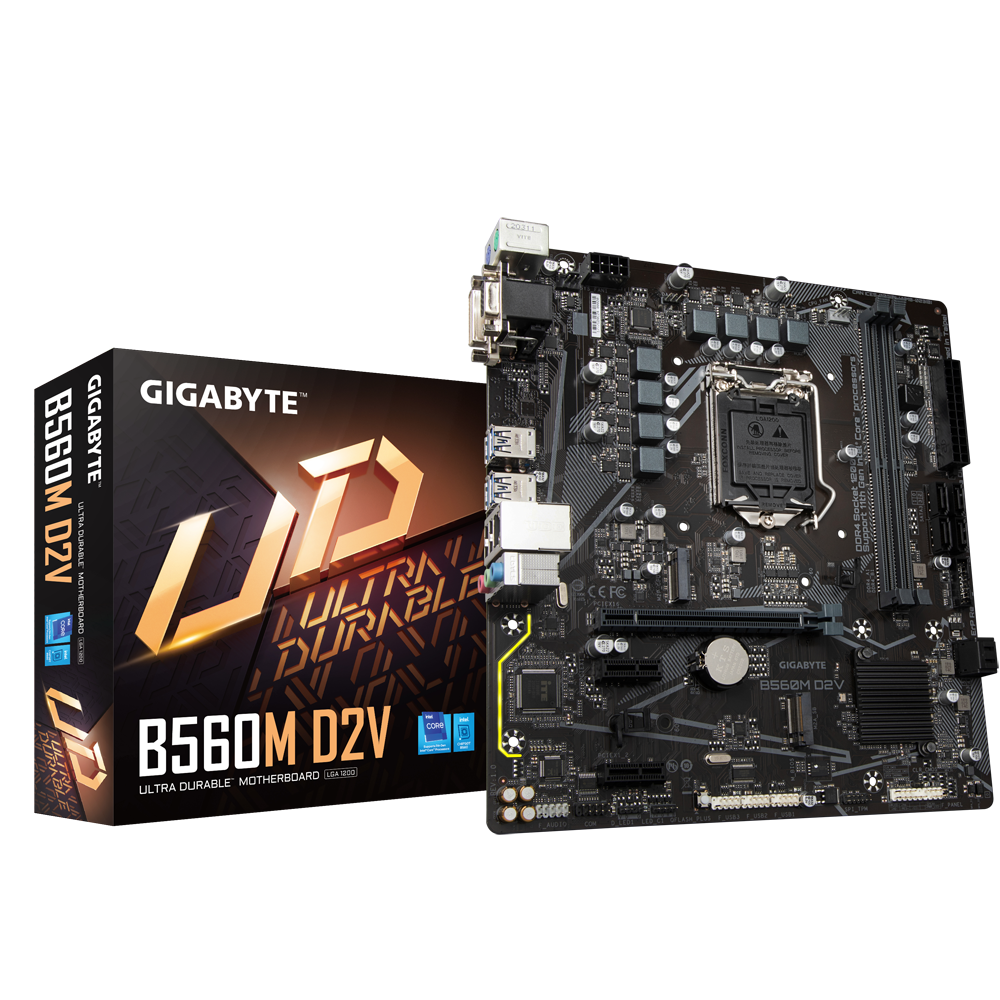

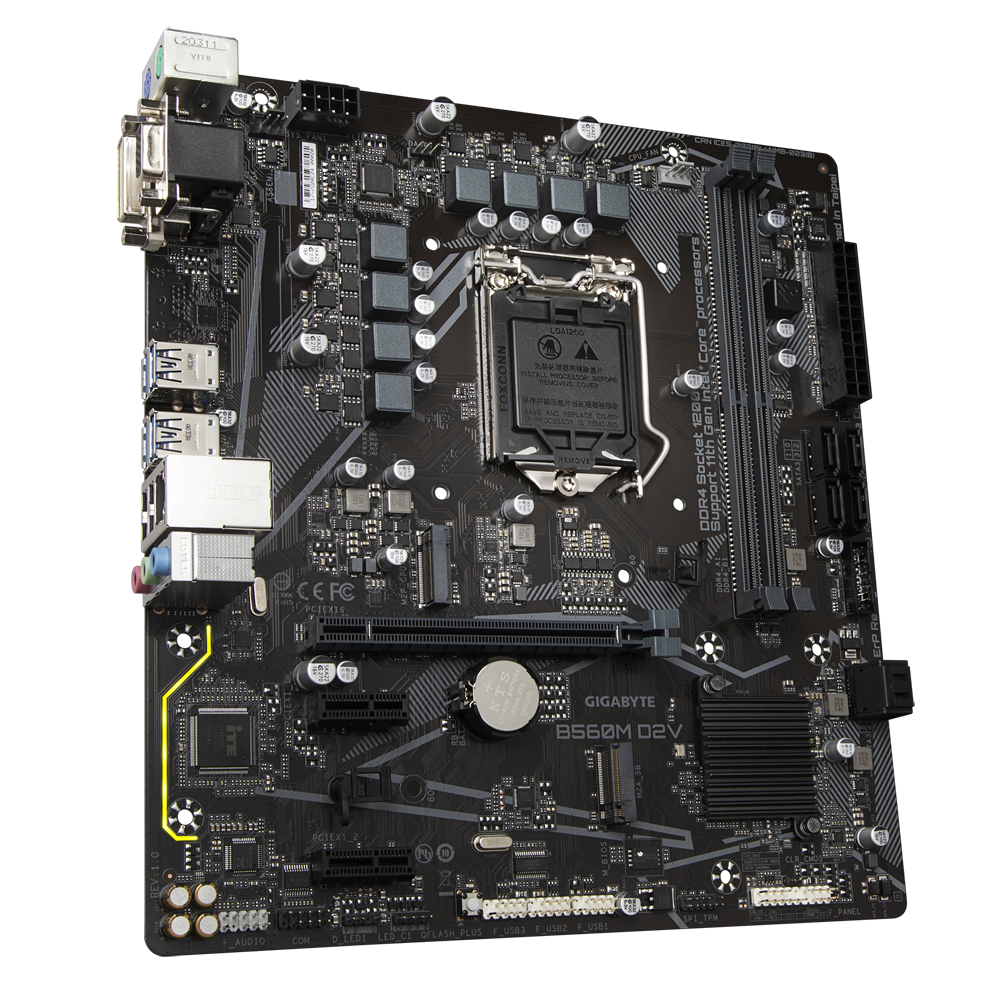

Intel® B560 Ultra Durable Motherboard with Direct 6+2 Phases Digital VRM, Full PCIe 4.0* Design, PCIe 4.0 M.2, GIGABYTE 8118 Gaming LAN, RGB FUSION 2.0, Q-Flash Plus
- Supports 11th and 10th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
- Dual Ultra-Fast NVMe PCIe 4.0* /3.0 x4 M.2
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channe * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. |
| Specifications | Chipset | Intel® B560 Express Chipset |
| Specifications | Form Factor | Micro ATX Form Factor; 24.4cm x 22.5cm |
| Specifications | I/O Connectors | 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x D-Sub port 1 x DVI-D port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Specifications | Integrated CPU Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. (Graphics specifications may vary depending on CPU support.) |
| Specifications | LAN | Realtek® GbE LAN chip (1 Gbit/100 Mbit) |
| Specifications | Memory/Type/Bus/Max. | 11th Generation Intel® Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Specifications | PCI Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note) 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2) (The PCIEX1 slot conforms to PCI Express 3.0 standard.) |
| Specifications | Processor Support | 11th Generation Intel® Core i9 processors / Intel® Core i7 processors / Intel® Core i5 processors 10th Generation Intel® Core i9 processors / Intel® Core i7 processors / Intel® Core i5 processors / Intel® Core i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. L3 cache varies with CPU |
| Specifications | Raid | No |
| Specifications | RAM Type/Bus/Max. | 11th Generation Intel® Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Specifications | Socket | LGA1200 |
| Specifications | Storage Interface | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0x4/x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane Memory Ready * System acceleration with Intel® Optane Memory can only be enabled on the M2P_CPU connector and with an 11th Generation Intel® processor installed. |
| Specifications | Warranty | 3 Years |
| Specifications | Weight |
