AMD B450 Ultra Durable Motherboard with GIGABYTE Gaming LAN and Bandwidth Management, PCIe Gen3 x4 M.2, 7-colors RGB LED Strips Support, Anti-Sulfur Resistor Design.
Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
HDMI, DVI-D, D-sub Ports for Multiple Display
Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
RGB Fusion supports RGB LED Strips in 7-Colors
High Quality Audio Capacitors and Audio Noise Guard Design
Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
APP Center Including EasyTune™ and Cloud Station™ Utilities
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
GroupName | Name | Value |
---|---|---|
Specifications | Audio | Realtek® ALC887 codec |
Specifications | Chipset | AMD B450 |
Specifications | Form Factor | mATX |

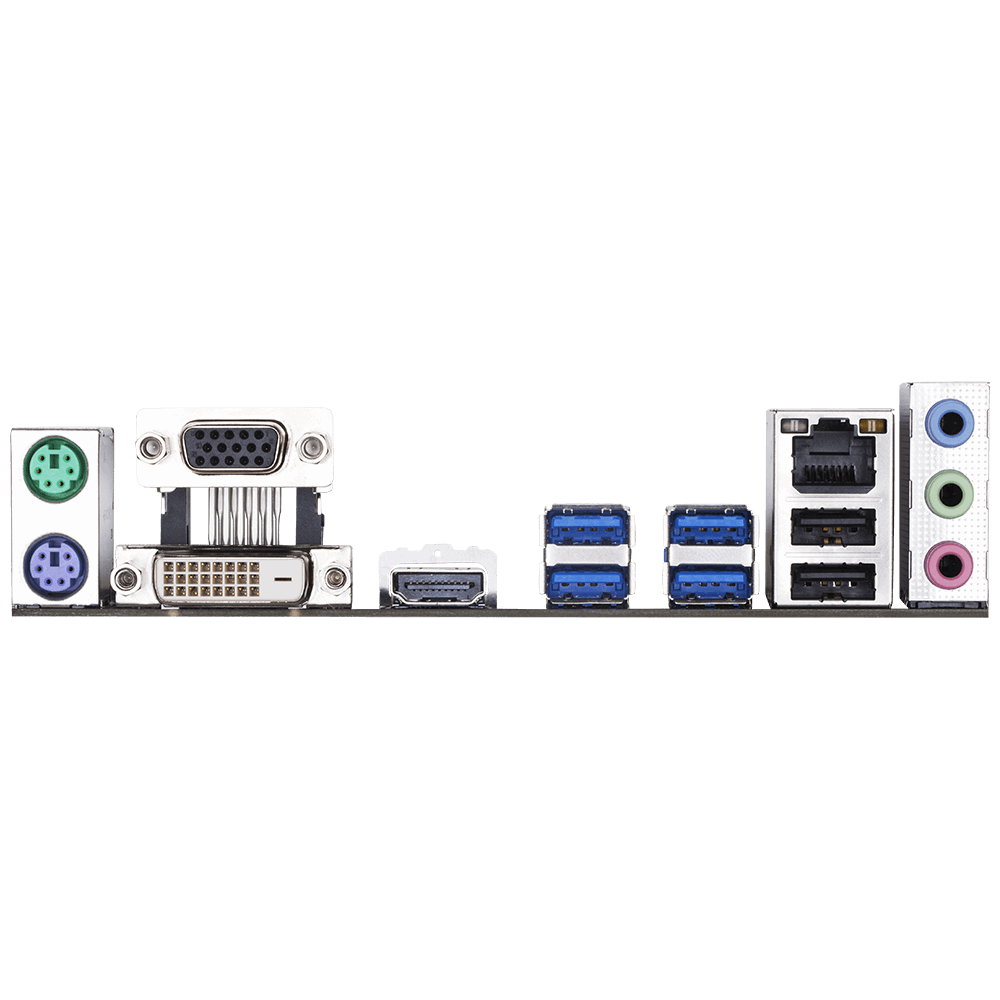

Specifications | I/O Connectors | 1 x PS/2 keyboard port, 1 x PS/2 mouse port, 1 x D-Sub port, 1 x DVI-D port, 1 x HDMI port, 4 x USB 3.1 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks |
Specifications | Integrated CPU Graphics | Yes, Actual support may vary by CPU |
Specifications | LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
Specifications | Memory/Type/Bus/Max. | 2 x DDR4 DIMM sockets supporting DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules up to 32 GB of system memory, |
Specifications | PCI Slots | 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots |
Specifications | Processor Support | AM4 Socket: Support for AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st Generation Processors |
Specifications | Raid | Support for RAID 0, RAID 1, and RAID 10 |
Specifications | RAM Type/Bus/Max. | 2 x DDR4 DIMM sockets supporting DDR4 3200(O.C.)/2933/266 |
Specifications | Socket | AM4 |
Specifications | Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support), 4 x SATA 6Gb/s connectors |
Specifications | Warranty | 3 Years |
Specifications | Weight | 790g |
