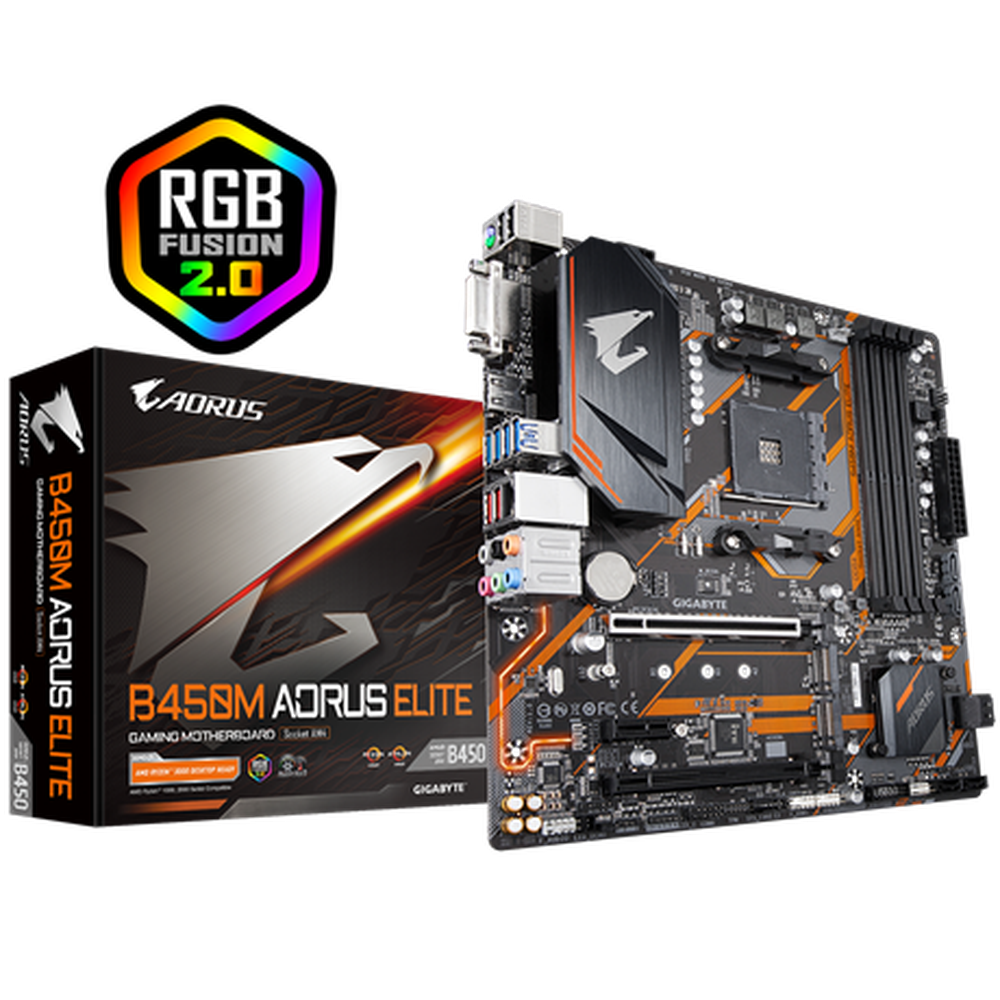

GA-B450M-AORUS-ELITE
AMD B450 AORUS Motherboard with Hybrid Digital PWM, Dual NVMe PCIe Gen3 M.2, GIGABYTE Gaming LAN with 25KV ESD Protection, Anti-sulfur Design, CEC 2019 ready, RGB FUSION 2.0
Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
HDMI, DVI-D Ports for Multiple Display
Ultra-Fast Dual NVMe PCIe Gen3 M.2 Connectors
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
RGB FUSION 2.0 with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
Smart Fan 5 Features 6 Temperature Sensors and 4 Hybrid Fan Headers with FAN STOP
APP Center Including EasyTune™ and Cloud Station™ Utilities
Anti-Sulfur Resistors Design
Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
CEC 2019 Ready, Save Power with a Simple Click
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | Realtek® ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Specifications | BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Specifications | Chipset | AMD B450 |
| Specifications | Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Specifications | H/W Monitoring | Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |

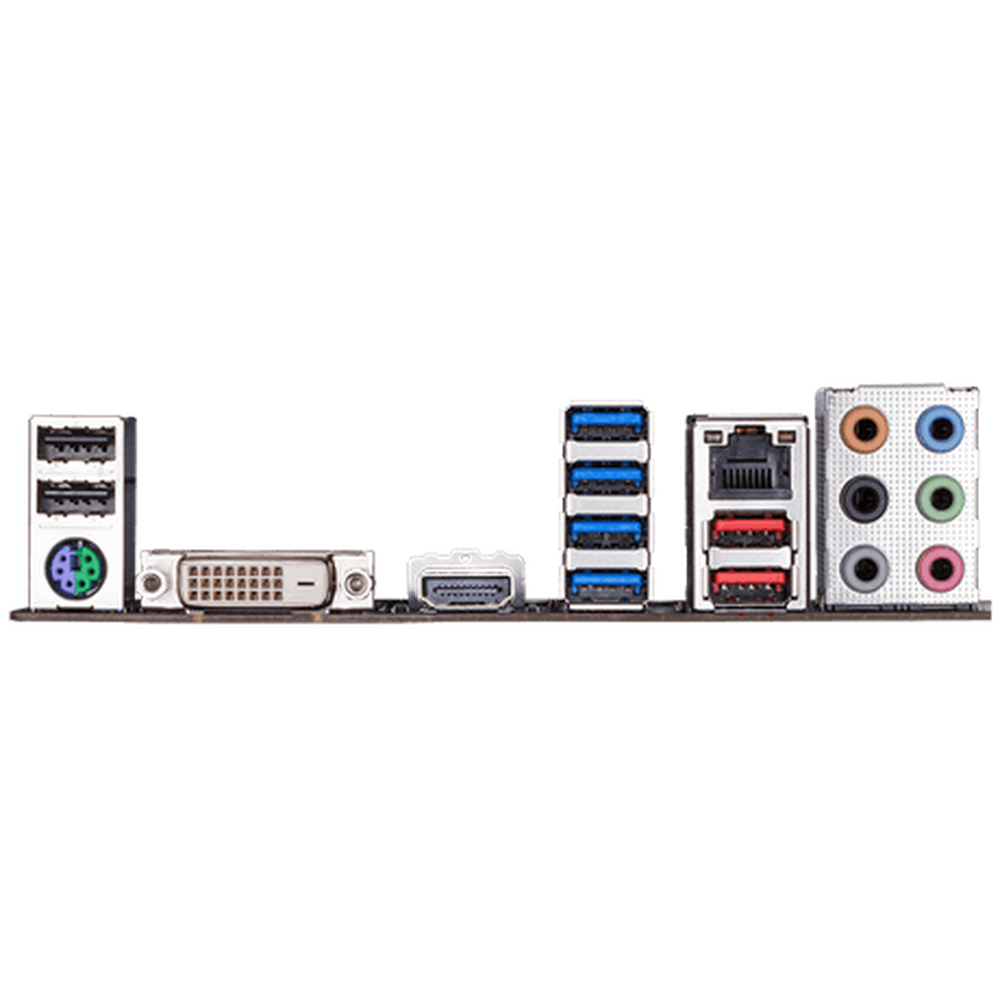

| Specifications | I/O Connectors | 1 x PS/2 keyboard/mouse port 2 x USB 2.0/1.1 ports 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 1 x RJ-45 port 2 x USB 3.1 Gen 2 Type-A ports (red) 6 x audio jacks |
| Specifications | Integrated CPU Graphics | Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB (Note) Actual support may vary by CPU. |
| Specifications | LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Specifications | Memory/Type/Bus/Max. | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules |
| Specifications | Operating System | Support for Windows 10 64-bit Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7. |
| Specifications | PCI Slots | Expansion Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (Note) Actual support may vary by CPU. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.) |
| Specifications | Processor Support | AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 1st Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ 1st Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors |
| Specifications | Raid | Support for RAID 0, RAID 1, and RAID 10 |
| Specifications | RAM Type/Bus/Max. | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules |
| Specifications | Socket | AMD AM4 |
| Specifications | Storage Interface | Integrated in the CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET) 2 x SATA 6Gb/s connectors (ASATA3 1/2) Integrated in the Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSD support) (M2B_SOCKET) 4 x SATA 6Gb/s connectors (SATA3 0/1/2/3) Support for RAID 0, RAID 1, and RAID 10 |
| Specifications | Unique Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart Survey System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install |
| Specifications | USB | Integrated in the CPU: 4 x USB 3.1 Gen 1 ports on the back panel Integrated in the Chipset: 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.1 Gen 1 ports available through the internal USB headers 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Specifications | Warranty | 3 Years |
| Specifications | Weight |
