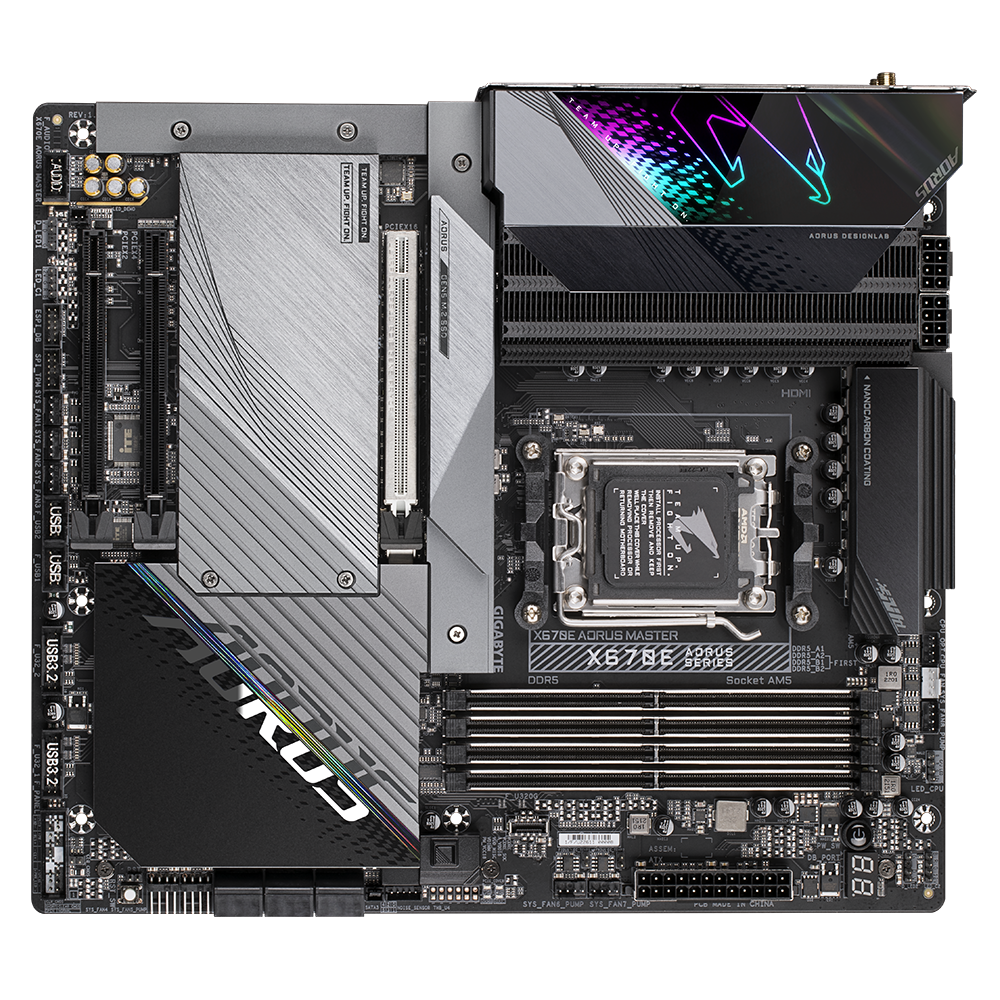

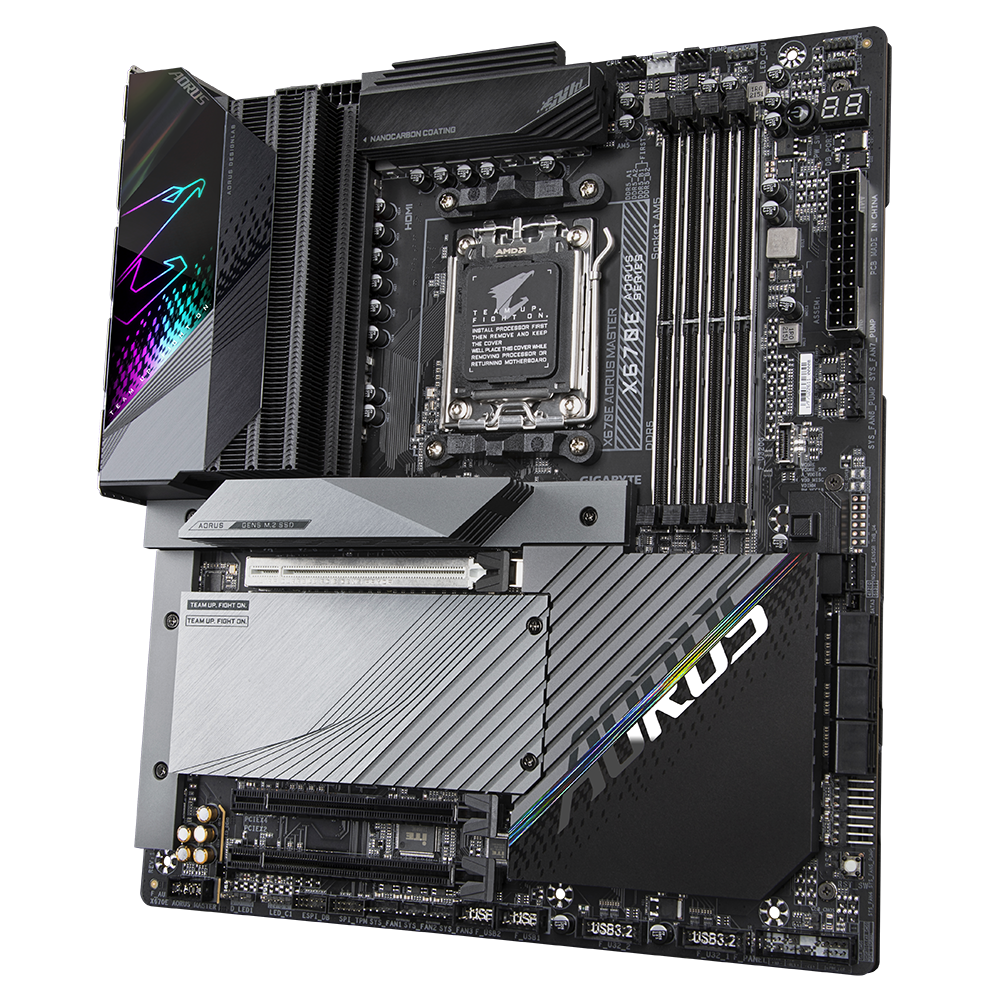

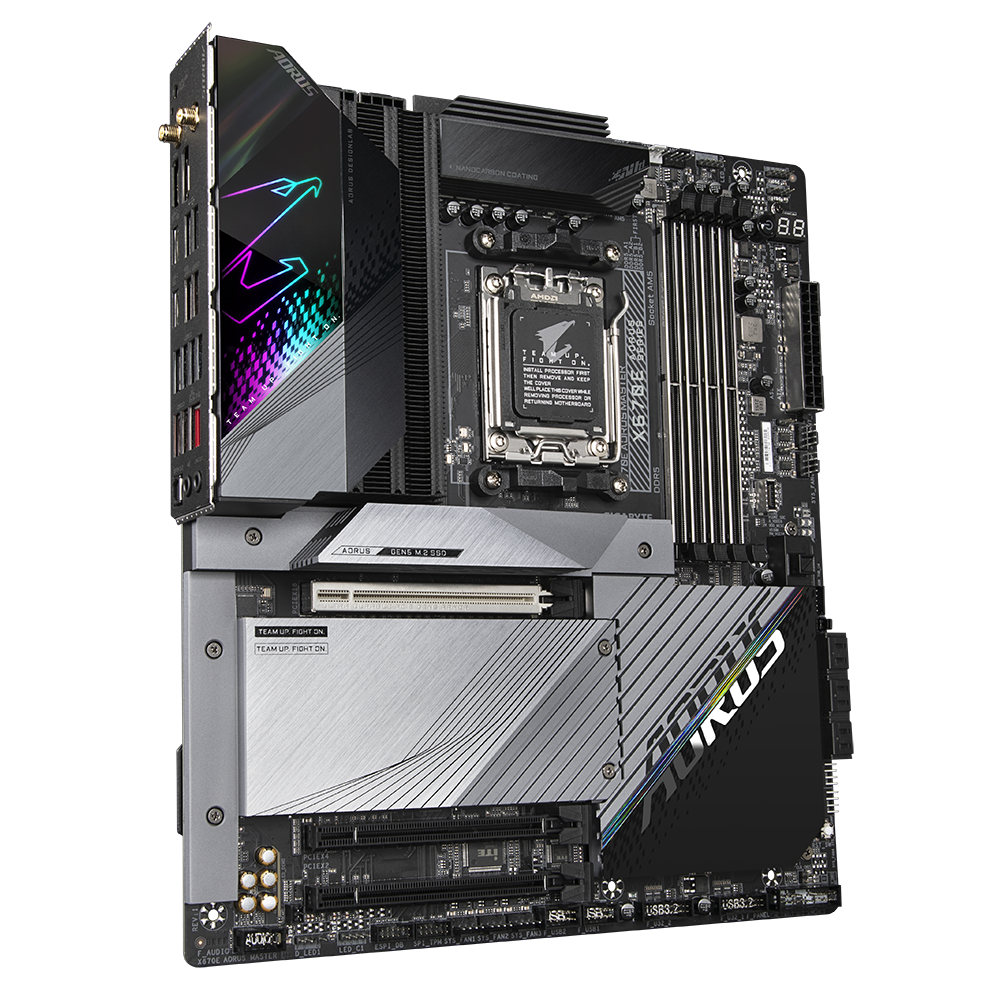

X670E AORUS MASTER (rev. 1.0)
Key Feature:
- AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
- Unparalleled Performance：Twin 16*+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- Next Generation Storage：2*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
- Fins-Array III & M.2 Thermal Guard III：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
- EZ-Latch Plus：SMD PCIe 5.0 x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Hi-Fi Audio with DTS:X® Ultra：ALC1220 CODEC
- Fast Networks：Intel® 2.5GbE LAN & Intel® Wi-Fi 6E 802.11ax
- Extended Connectivity：DP, HDMI, USB-C® with DP Alt Mode, Dual USB-C® 20Gbps and Upcoming GIGABYTE USB4 AIC Support
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | Realtek® ALC1220-VB CODEC |
| Specifications | Chipset | AMD X670 |
| Specifications | Form Factor | E-ATX Form Factor; 30.5cm x 26.9cm |
| Specifications | I/O Connectors | 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI 2.0 port 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| Specifications | Integrated CPU Graphics | Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
| Specifications | LAN | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Specifications | Memory/Type/Bus/Max. | Support for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz memory modules, 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Specifications | PCI Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16) * Actual support may vary by CPU. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) * The PCIEX2 slot shares bandwidth with the SATA3 4/5 connectors. The SATA3 4/5 connectors will become unavailable when a device is installed in the PCIEX2 slot. Support for AMD CrossFire technology (PCIEX16 and PCIEX4) |
| Specifications | Processor Support | AMD Socket AM5, support for : AMD Ryzen 7000 Series Processors |
| Specifications | Raid | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Specifications | RAM Type/Bus/Max. | Support for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz memory modules, 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Specifications | Socket | AM5 |
| Specifications | Storage Interface | CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU) * Actual support may vary by CPU. Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB) 6 x SATA 6Gb/s connectors |
| Specifications | Warranty | 3 Years |
| Specifications | Weight | |
| Specifications | Wireless Communication module | Intel® Wi-Fi 6E AX210 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.) |
