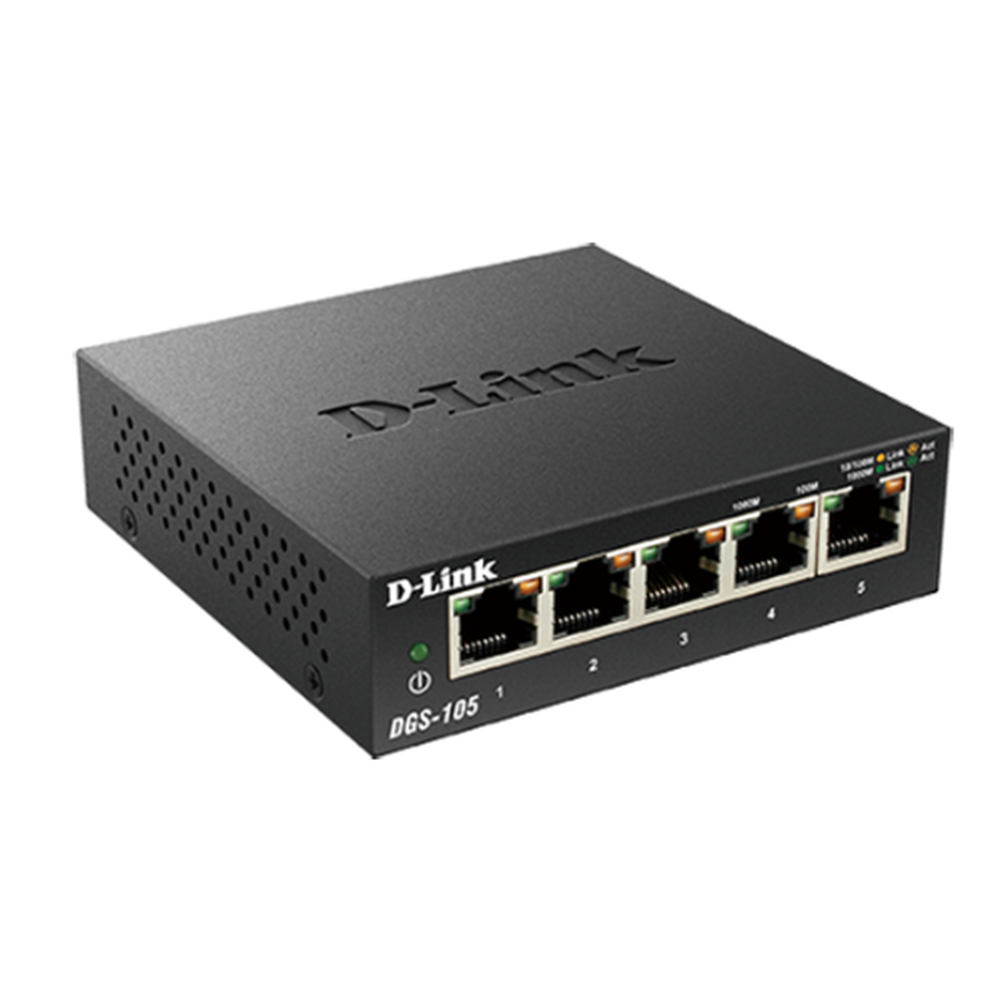

Dlink 5-Port Gigabit Desktop Switch (Metal Housing)

D-Link DGS-105

The DGS-105 5-Port Gigabit Switch provides a quick, easy and economical way to add high speed networking to home offices, small and medium businesses. With data transfer speeds of up to 2000 Mbps the DGS-105 is ideal for fast file transfers and easy expansion of your network for connecting printers, scanners, storage, and backup devices to any network. Compact design with metal case that is ideal for wiring closets, conference rooms or small offices. Use it on a flat surface or use the included wall mount kit.

• 5-Port Gigabit Ethernet Switch

• Plug-n-Play Installation

• Speeds Up to 10x Faster than 10/100 Ethernet

• IEEE 802.1P QoS Support for Superior Traffic Prioritization

• Intelligent cable diagnostics for efficient troubleshooting.

• Gigabit Ports for Incredible Wired Network Speeds

• High reliability with Rugged Metal Case and High MTBF


Robust Design

The DGS-105 is designed with durability and performance in mind. The sturdy metal housing will protect the switch against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The visible LEDs allow for an easy reading of each port status and speed, helping to troubleshoot connectivity problems. For a convenient placement, the DGS-105 comes with a wall mounting kit and a slot for a Kensington security lock to protect it from theft.

QoS (Quality of Service)

Despite being an unmanaged, Plug and Play switch, the DGS-105 is able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.

Cable Diagnostics Function

The cable diagnostics function enables users to quickly troubleshoot faulty network cables that may lead to transmission errors. At startup, the switch performs a micro-test to assess the quality of the cables connected to its ports. If a fault is detected, the amber LED will lit up. If the cables pass the test, the green LED will be illuminated, indicating that the network is error-free. This feature can save valuable time when trying to single out a faulty cable that causes problems in the whole network.

Power-saving Technology

The DGS-105 is part of D-Link Green™, D-Link’s eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. This switch implements the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. Additionally, the Green Ethernet™ technology in the DGS-105 can detect the length of the network cables connected to its ports and provide only the right amount of energy required. This helps businesses to save money by reducing their electricity bills with no compromise on performance.
