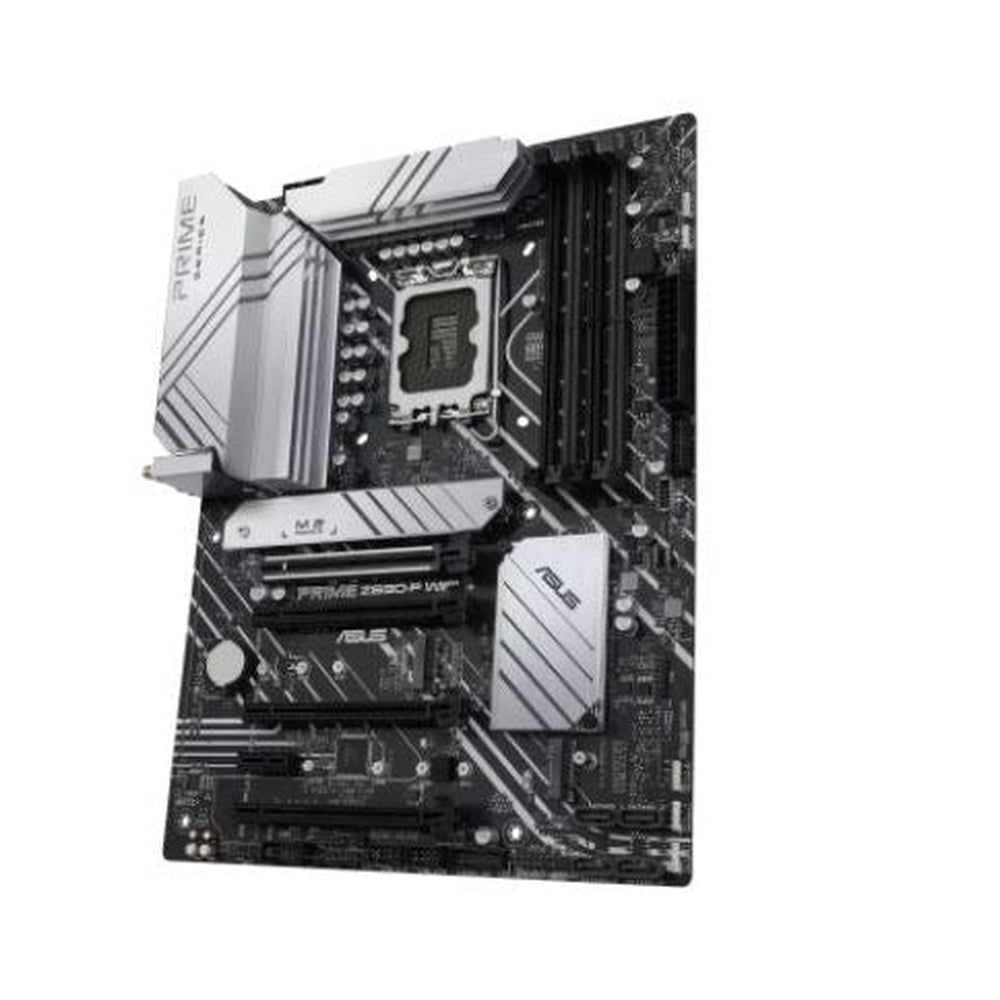

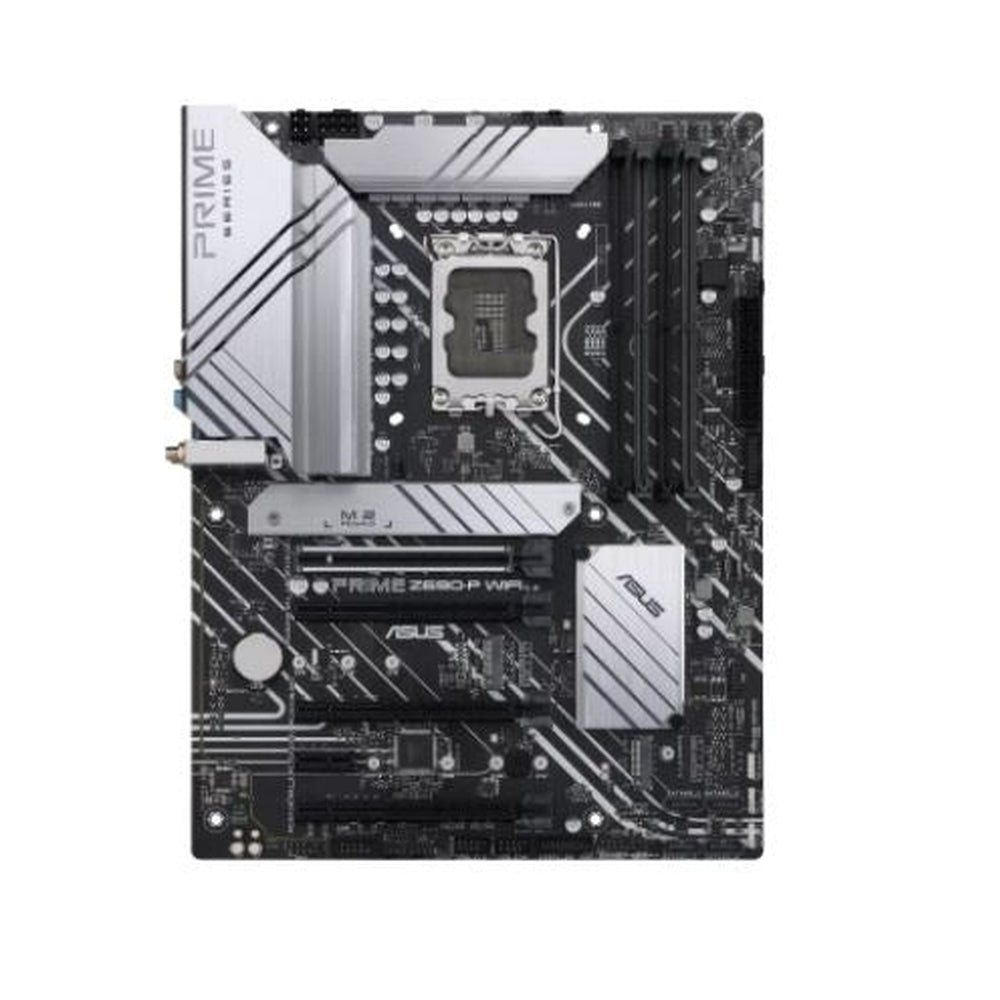

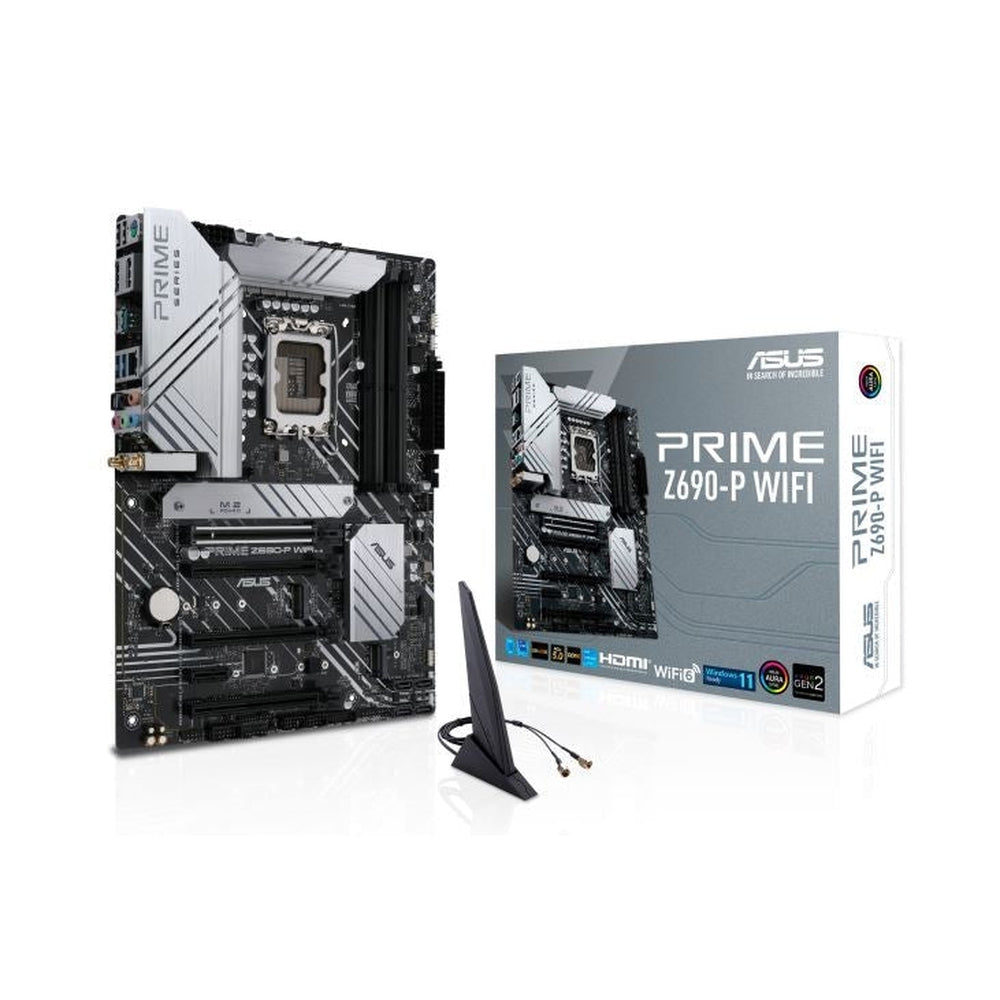

Intel® Z690 (LGA 1700) ATX motherboard with PCIe® 5.0, DDR5, three M.2 slots, 14+1 DrMOS, HDMI®, DisplayPort™, Intel® WiFi 6, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 support and Aura Sync RGB lighting
- Intel® LGA 1700 socket: Ready for 12th gen Intel® processors
- Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Next-gen connectivity: DDR5, PCIe® 5.0, Intel® WiFi 6, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
| Specifications | Chipset | Z690 |
| Specifications | Form Factor | ATX 30.5cm x 23.4cm |

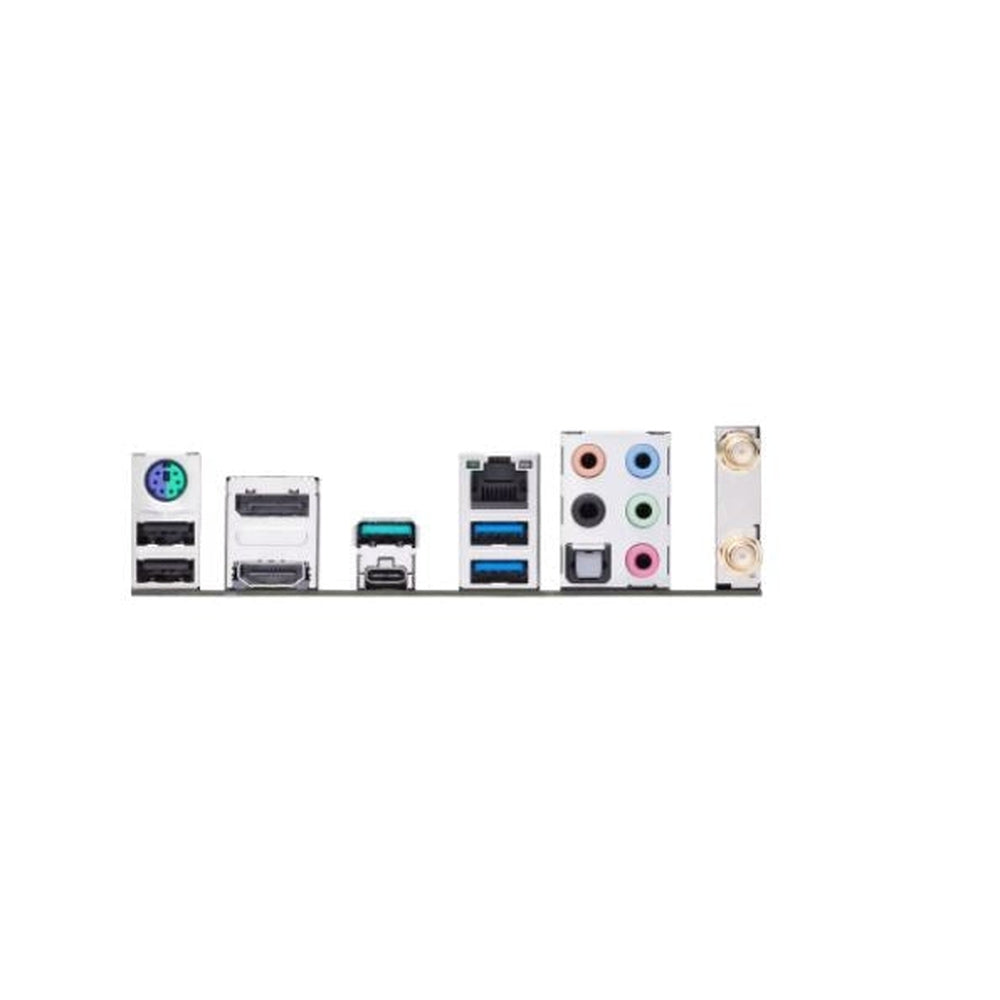

| Specifications | I/O Connectors | 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports* * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. |
| Specifications | Integrated CPU Graphics | 1 x DisplayPort** 1 x HDMI |
| Specifications | LAN | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard ASUS LANGuard |
| Specifications | Memory/Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture |
| Specifications | PCI Slots | Intel® 12th Gen Processors* 1 x PCIe 5.0/4.0/3.0 x16 slot |
| Specifications | Processor Support | Intel® Socket LGA1700 for 12th Gen Intel® Core, Pentium® Gold and Celeron® Processors |
| Specifications | Raid | NVMe RAID 0/1/5, SATA RAID 0/1/5/10. |
| Specifications | RAM Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture |
| Specifications | Socket | Intel® Socket LGA1700 |
| Specifications | Storage Interface | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports |
| Specifications | Warranty | 3 Years warranty |
| Specifications | Weight | 1.79kgs |
