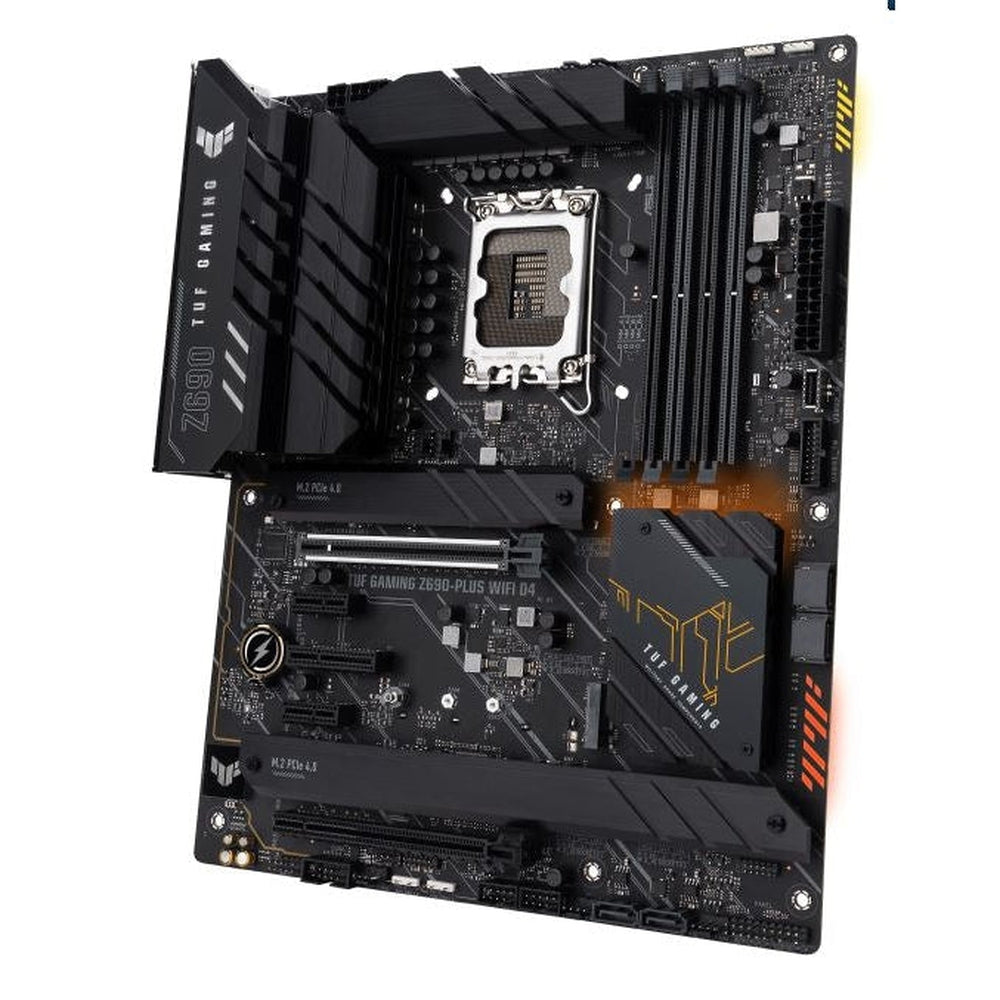

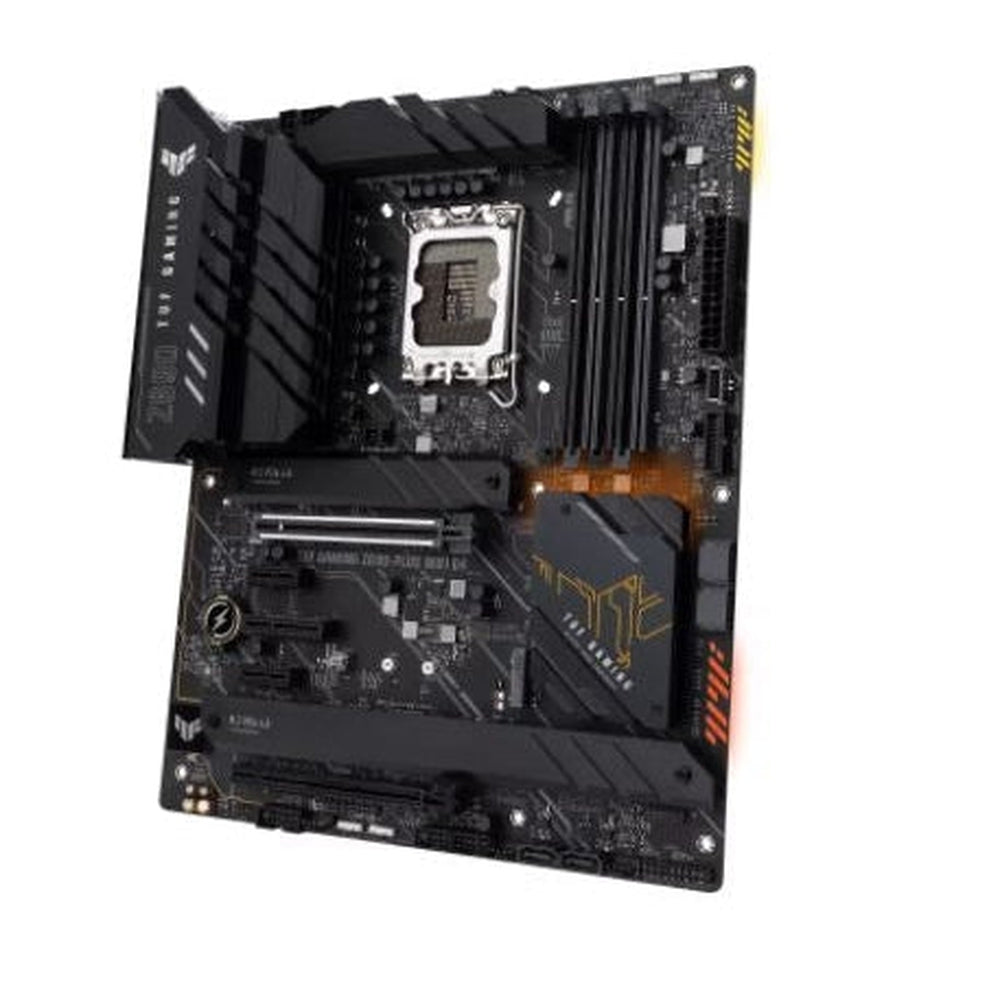

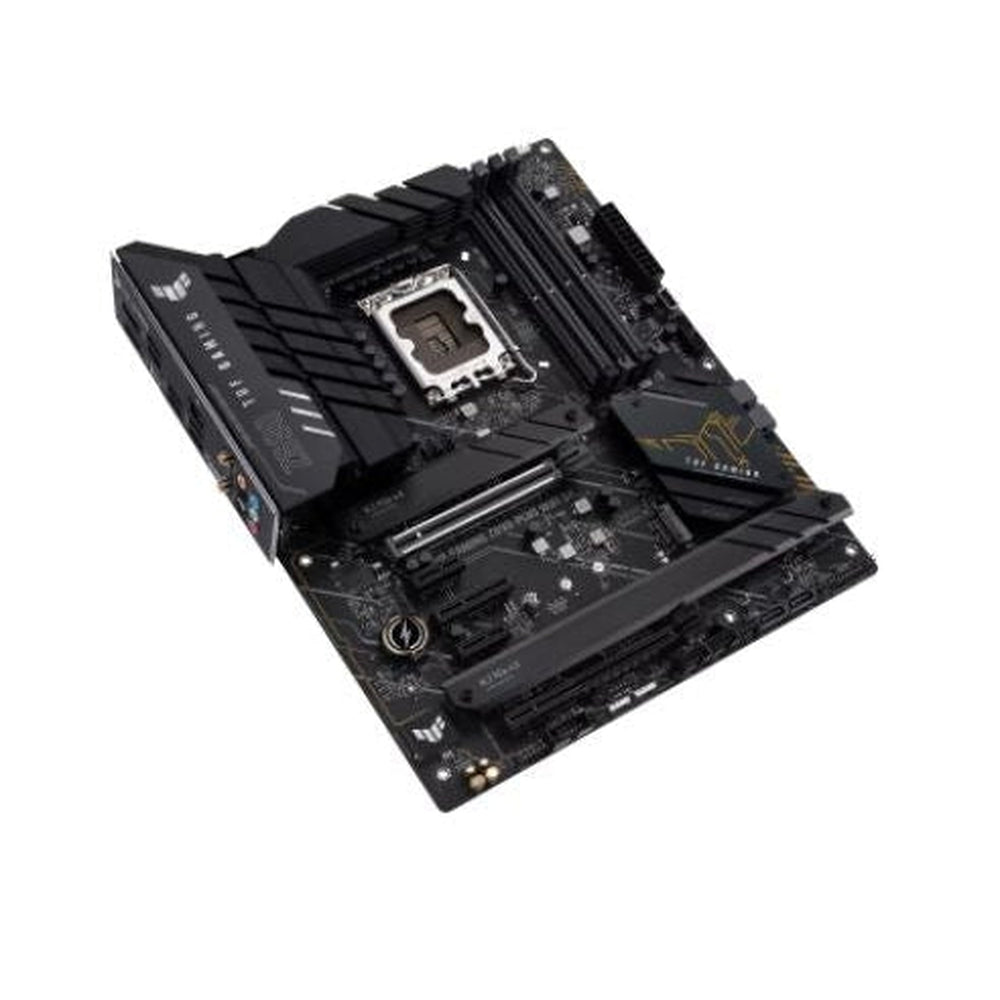

TUF GAMING Z690-PLUS WIFI D4
Intel® Z690 (LGA 1700) ATX gaming motherboard, 15 DrMOS power stages, PCIe® 5.0, DDR4 memory, four M.2 slots, WiFi 6 and Intel 2.5 Gb Ethernet, HDMI®, DisplayPort™, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 2 Type C, SATA 6 Gbps, Thunderbolt™ 4 header and Aura Sync RGB lighting
- Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™ processors
- Enhanced power solution: 14+1 DrMOS, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
- Next-gen connectivity: PCIe® 5.0, USB 3.2 Gen2x2 Type-C®, front USB 3.2 Gen 2 Type-C, Thunderbolt™ 4 header support
- Made for online gaming: WiFi 6, Intel 2.5 Gb Ethernet and TUF LANGuard
- Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
- Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate
- Outshine RGB Aura Effect: Stylish edge and PCH lighting design, addressable RGB headers and RGB strip header support
Durable. Stable. Reliable.
ASUS TUF GAMING Z690-PLUS WIFI D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid and stable performance for marathon gaming. Aesthetically, TUF GAMING Z690-PLUS WIFI D4 sports the new TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.
Rock-Solid Performance
With upgraded power delivery and comprehensive cooling options to drive the 12th Gen Intel Core™ processors, plus support for faster memory and storage, TUF GAMING Z690 motherboards are the perfect foundation for your next high-core-count battle rig.
Easy PC DIY
TUF GAMING motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software provides Fan Xpert 4 and hardware information and offers full full control of Two-Way AI Noise Cancellation, RGB lighting and peripheral settings. The TUF GAMING platform gives you the arsenal you need to build and optimize your dream gaming rig, without unnecessary complexity.
Build with Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
Immersive Gaming
TUF GAMING Z690 motherboards provide a high-performance gaming package with a long list of features to improve your experiences, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
MyASUS
MyASUS offers a variety of support features to help you contact customer service, troubleshoot issues and optimize product performance. You can also use MyASUS to enable the WiFi SmartConnect function to automatically connect to the wireless router with the best signal.
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC*, Supports up to 24-Bit/192 kHz playback |
| Specifications | Chipset | Z690 |
| Specifications | Form Factor | ATX 30.5cm x 24.4cm |
| Specifications | I/O Connectors | 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Specifications | Integrated CPU Graphics | 1 x DisplayPort** 1 x HDMI® port***, ** Supports max. 4K@60Hz as specified in DisplayPort 1.4 ***Supports 4K@60Hz as specified in HDMI 2.1. |
| Specifications | LAN | 1 x Intel® 2.5Gb Ethernet TUF LANGuard |
| Specifications | Memory/Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC) /3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture |
| Specifications | PCI Slots | Intel® 12th Gen Processors* 1 x PCIe 5.0 x16 slot Intel® Z690 Chipset** 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x4 slot 2 x PCIe 3.0 x1 slots |
| Specifications | Processor Support | Intel® Socket LGA1700 for 12th Gen Intel® Core, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Specifications | Raid | NVMe RAID 0/1/5, SATA RAID 0/1/5/10. |
| Specifications | RAM Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC) /3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture |
| Specifications | Socket | Intel® Socket LGA1700 for 12th Gen Intel® Core |
| Specifications | Storage Interface | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports |
| Specifications | Warranty | 3 Year warranty |
| Specifications | Weight | 2.07kgs |
