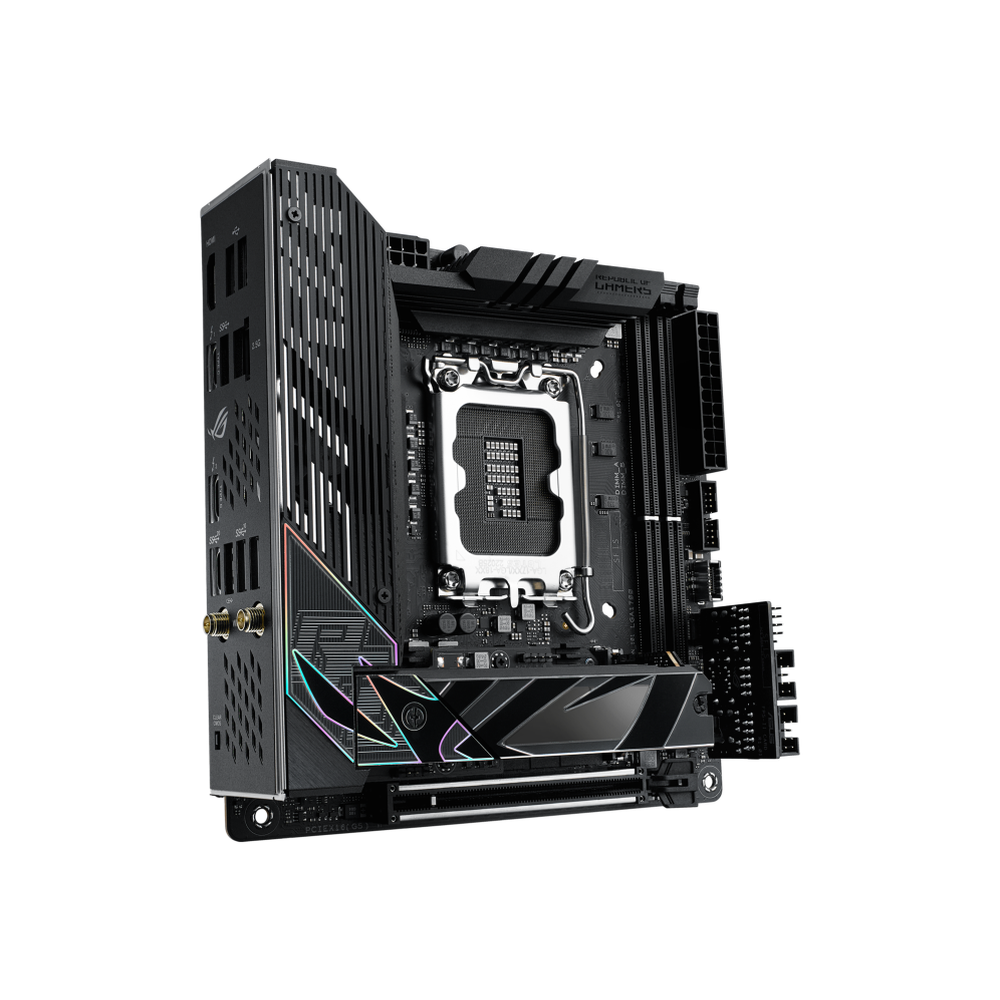

ROG STRIX Z790-I GAMING WIFI
Rules are made to be broken. Smashing the conventions of what a mini-ITX motherboard can do, the ROG Strix Z790-I’s power delivery rivals that of full-scale titans and its stacked thermal array is more than a match for multi-core behemoths. It also expands the boundaries of connectivity, with the innovative ROG Hive, a hybrid audio and USB hub with an added twist - an AI Overclocking button makes tuning so easy, it feels like cheating.
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | ROG High Definition Audio CODEC ALC4050 |
| Specifications | Chipset | Intel® Z790 Chipset |
| Specifications | Form Factor | Mini-ITX Form Factor 6.7 inch x 6.7 inch( 17cm x 17cm) |
| Specifications | I/O Connectors | 2 x Thunderbolt 4 USB Type-C® port(s) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 3 x USB 3.2 Gen 2 port(s) (3 x Type-A) (supports ROG STRIX HIVE) 1 x USB 3.2 Gen 1 port(s) (1 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 1 x Clear CMOS button |
| Specifications | Integrated CPU Graphics | 1 x HDMI® port*** 2 x Intel® Thunderbolt 4 ports (USB Type-C®) support DisplayPort and Thunderbolt video outputs**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution. |
| Specifications | LAN | 1 x Intel® 2.5Gb Ethernet |
| Specifications | Memory/Type/Bus/Max. | 2 x DIMM, Max. 64GB, DDR5 7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory |
| Specifications | PCI Slots | Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. A resolution support depends on processors' or graphic cards' resolution. |
| Specifications | Processor Support | Intel® Socket LGA1700 for 13th Gen Intel® Core Processors & 12th Gen Intel® Core, Pentium® Gold and Celeron® Processors |
| Specifications | Raid | AMD RAIDXpert2 Technology supports both NVMe RAID 0/1 and SATA RAID 0/1. |
| Specifications | RAM Type/Bus/Max. | 2 x DIMM, Max. 64GB, DDR5 7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory |
| Specifications | Socket | LGA1700 |
| Specifications | Storage Interface | Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports |
| Specifications | Warranty | 3 Years |
| Specifications | Weight | |
| Specifications | Wireless & Bluetooth | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. |
