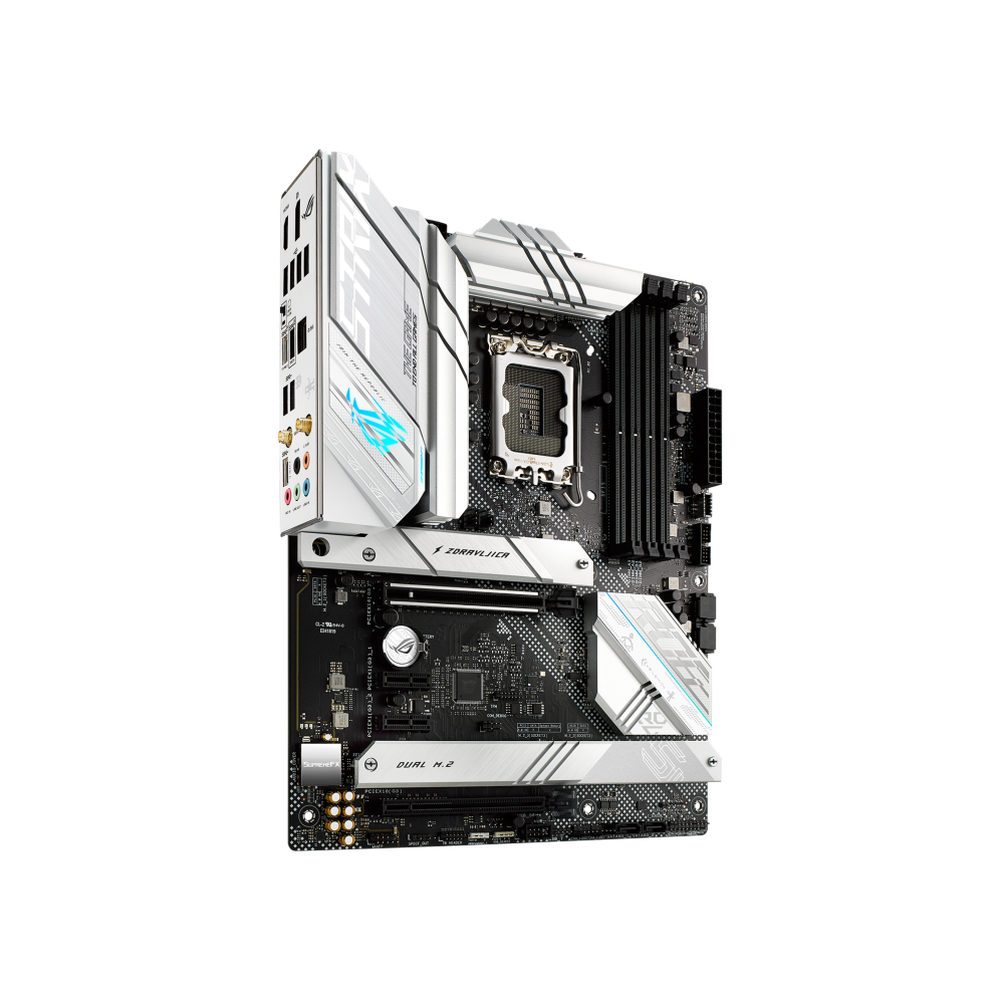

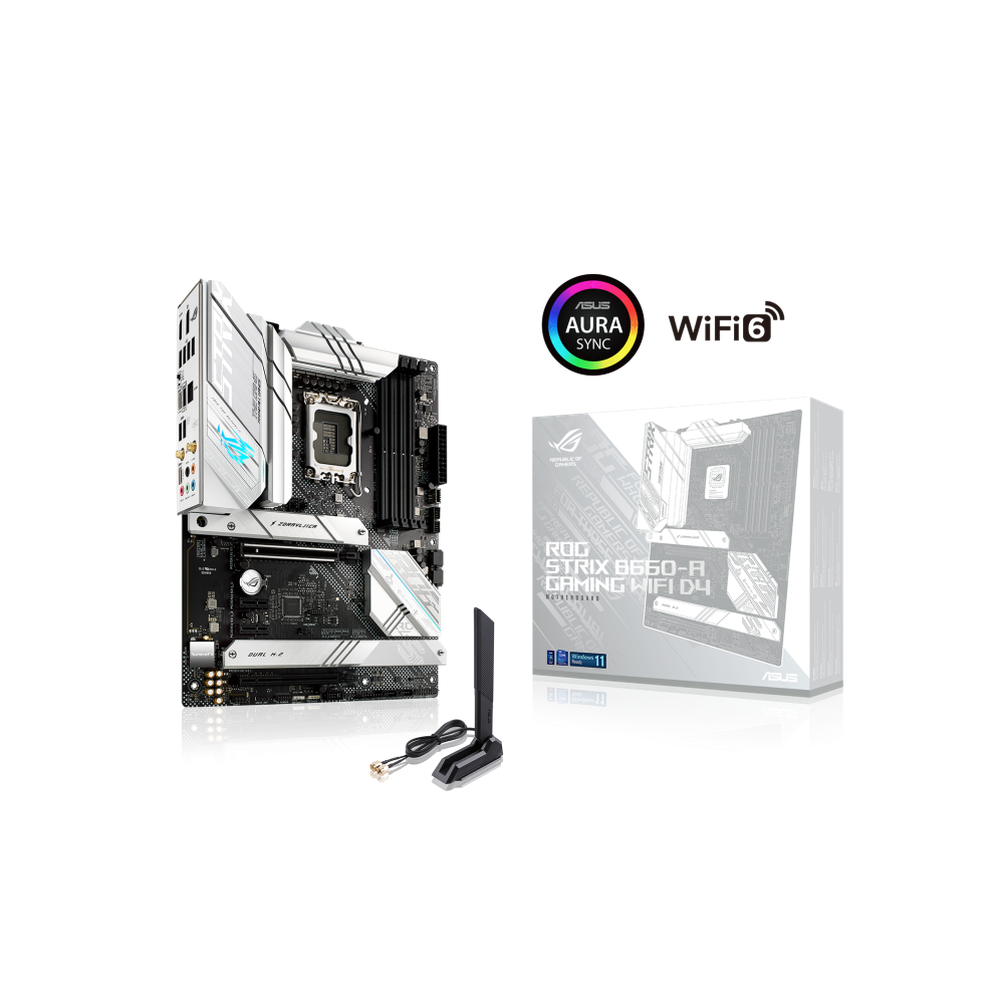

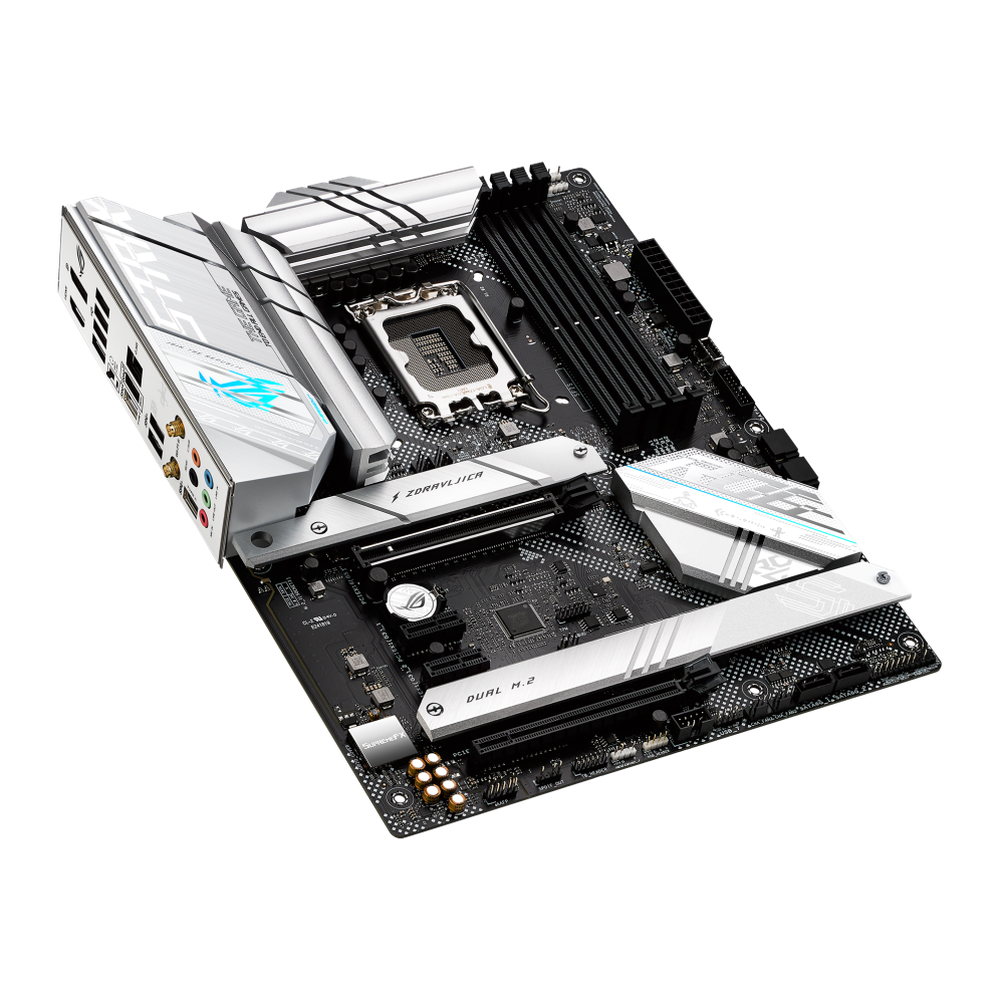

ROG STRIX B660-A GAMING WIFI D4
Intel® B660 LGA 1700 ATX motherboard with PCIe® 5.0, 12+1 power stages, Two-Way AI Noise Cancelation, AI Cooling, AI Networking, WiFi 6 (802.11ax), Intel 2.5 Gb Ethernet, three PCIe 4.0 M.2 slots with heatsinks, USB 3.2 Gen 2x2 Type-C®, SATA and Aura Sync RGB lighting
- Intel® LGA 1700 Socket: Ready for 12th Gen Intel Core™, Pentium® Gold and Celeron® processors
- Optimal Power Solution: 12+1 power stages with ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Integrated I/O cover, VRM heatsinks with high conductivity thermal pads, and three onboard M.2 heatsinks
- High-performance Networking: On-board Intel® WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2x2 Type-C®
- Intelligent Control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button and Q-LED
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 headers
- Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound™ and Sonic Studio III
- Renowned Software: Bundled 60-day free trial of AIDA64 Extreme, and an intuitive UEFI BIOS dashboard
ROG STRIX B660-A GAMING WIFI D4
ROG Strix B660-A Gaming WiFi D4 offers premium power delivery and optimized cooling to unleash the full force of the latest 12th Gen Intel® Core™ processors. Onboard PCIe® 5.0, WiFi 6 and three PCIe 4.0 M.2 slots provide lightning-fast data transfers for an endless variety of scenarios, and ASUS-exclusive intelligent controls to help optimize PC settings. On top of all that, DIY-friendly innovations help simplify the PC building process to get to you up and running smoothly.
ALL-ROUND PERFORMANCE
Robust power delivery and comprehensive cooling features ensure exceptional performance, while AI-powered enhancements optimize network settings and improve communication - all to help you maximize the full potential of your rig.
LEADING CONNECTIVITY
ROG Strix B660-A Gaming WiFI D4 delivers wickedly fast connectivity for supersmooth online experiences and ultrafast data transfers. Add alongside those perks, we've managed to cram in an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.
PLAY IN STYLE
A striking silver-white aesthetic with complementary RGB lighting delivers a build that stands out in every way. Pair the ROG Strix B660-A Gaming WiFi D4 with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.
ROG GIVES YOU MORE
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. To further aid system setup and performance tuning, the highly acclaimed AIDA64 and MemTest86 utilities have also been added to the mix.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY and more comprehensive features for seasoned veterans.
5-WAY OPTIMIZATION
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|

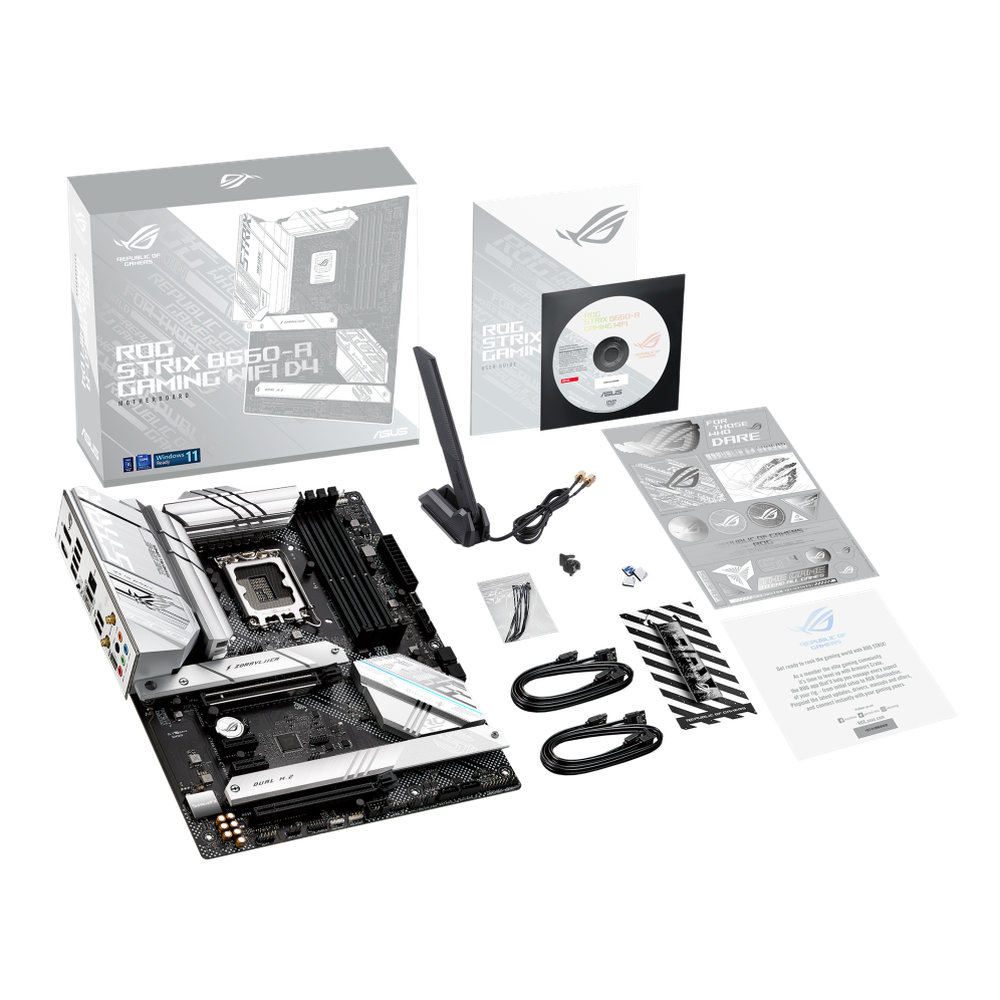

| Specifications | Accessories | Cables 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Rubber Package(s) 1 x M.2 Q-Latch package(s) 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x Support DVD Documentation 1 x User guide |
| Specifications | Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |

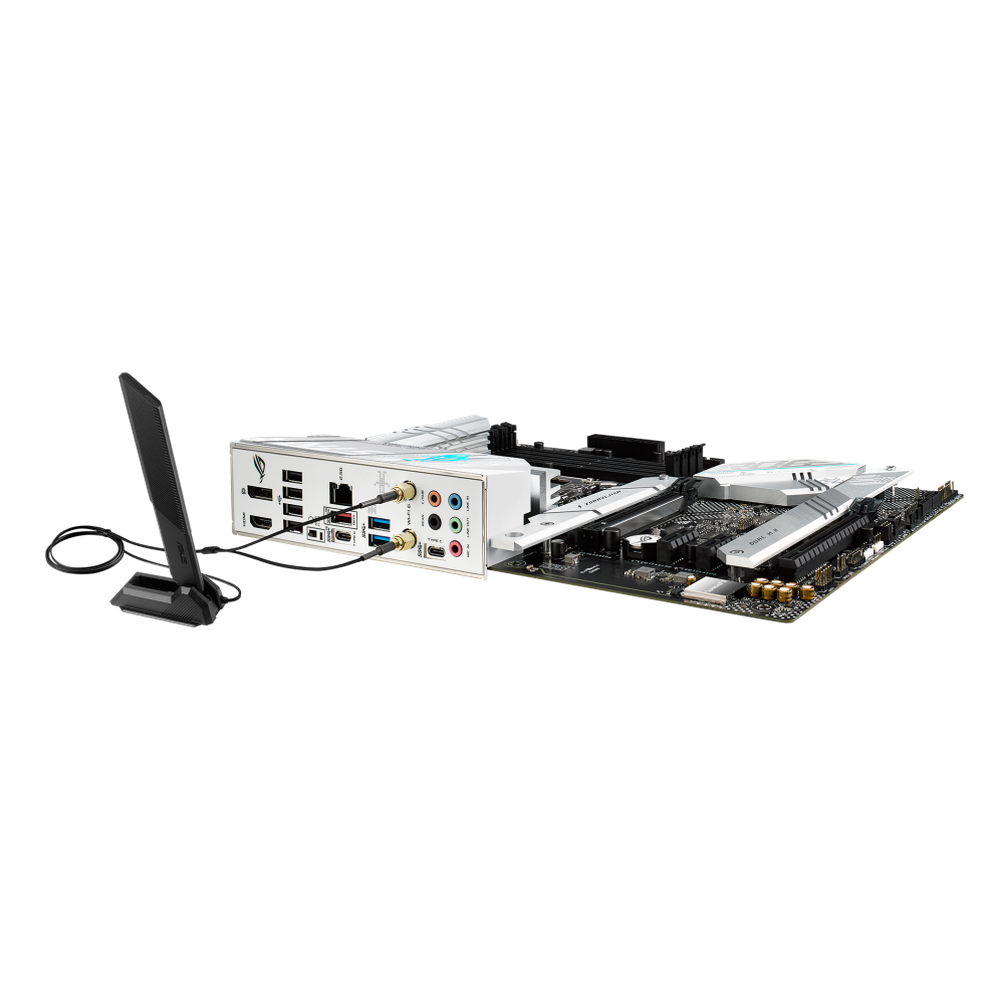

| Specifications | Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
| Specifications | BIOS | 192 Mb Flash ROM, UEFI AMI BIOS |
| Specifications | Chipset | Intel® B660 Chipset |
| Specifications | Form Factor | ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Specifications | I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 10-1pin header + 1 USB 2.0 4pin header support additional 3 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header |
| Specifications | Integrated CPU Graphics | 1 x DisplayPort (** Support 4K@60Hz as specified in DisplayPort 1.4), 1 x HDMI® port (Support 4K@60Hz as specified in HDMI 2.1) |
| Specifications | LAN | 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard |
| Specifications | Manageability | WOL by PME, PXE |
| Specifications | Memory/Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR4 5333(OC) /5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
| Specifications | Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Specifications | PCI Slots | 1 x PCIe 5.0/4.0/3.0 x16 slot(s), 1 x PCIe 3.0 x16 slot (supports x4 mode), 2 x PCIe 3.0 x1 slots |
| Specifications | Processor Support | Intel® Socket LGA1700 for 12th Gen Intel®Core, Pentium® Gold and Celeron® Processors* |
| Specifications | Raid | Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| Specifications | RAM Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR4 5333(OC) /5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
| Specifications | Socket | Intel® Socket LGA1700 |
| Specifications | Software Features | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Turbo app MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Specifications | Special Features | Extreme Engine Digi+ -5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - CPU Socket lever protector - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) |
| Specifications | Storage Interface | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Specifications | USB | Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 10-1 pin header + 1 USB 2.0 4 pin hearer support additional 3 USB 2.0 ports |
| Specifications | Warranty | 3 Years |
| Specifications | Weight | |
| Specifications | Wireless & Bluetooth | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
