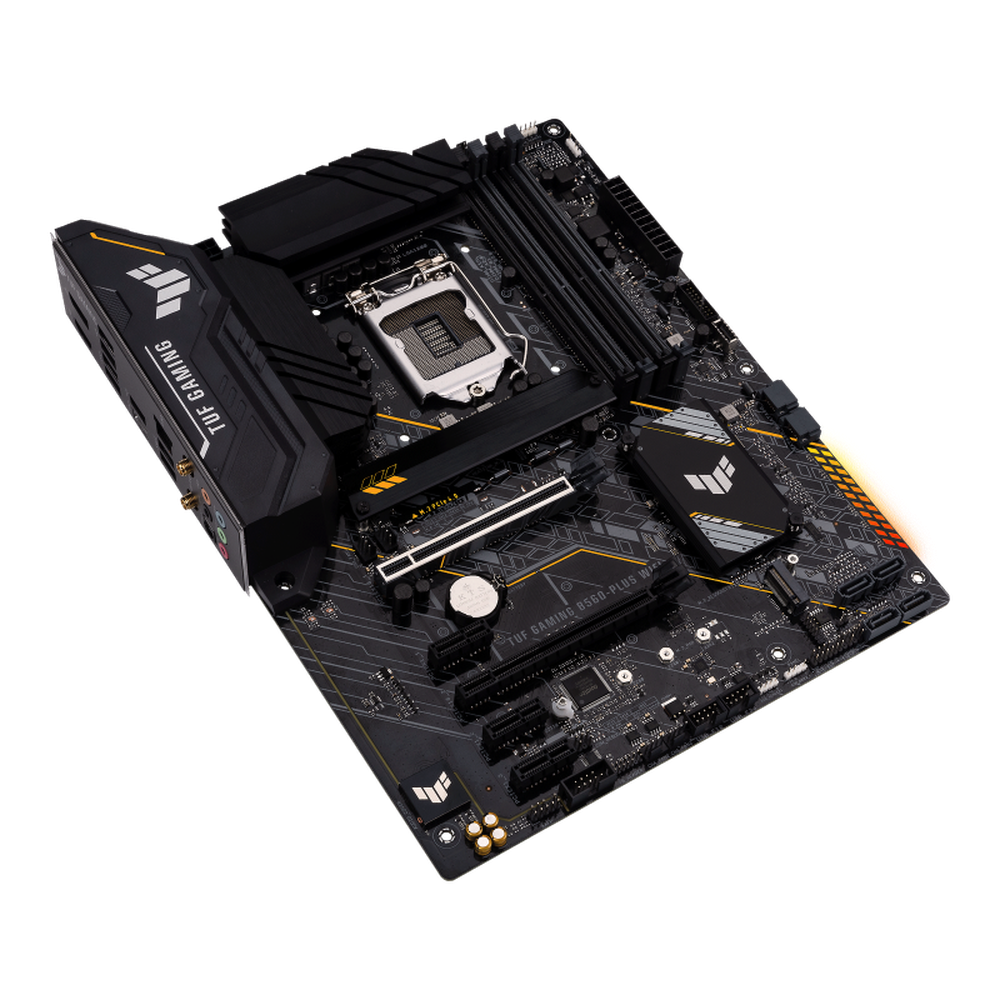

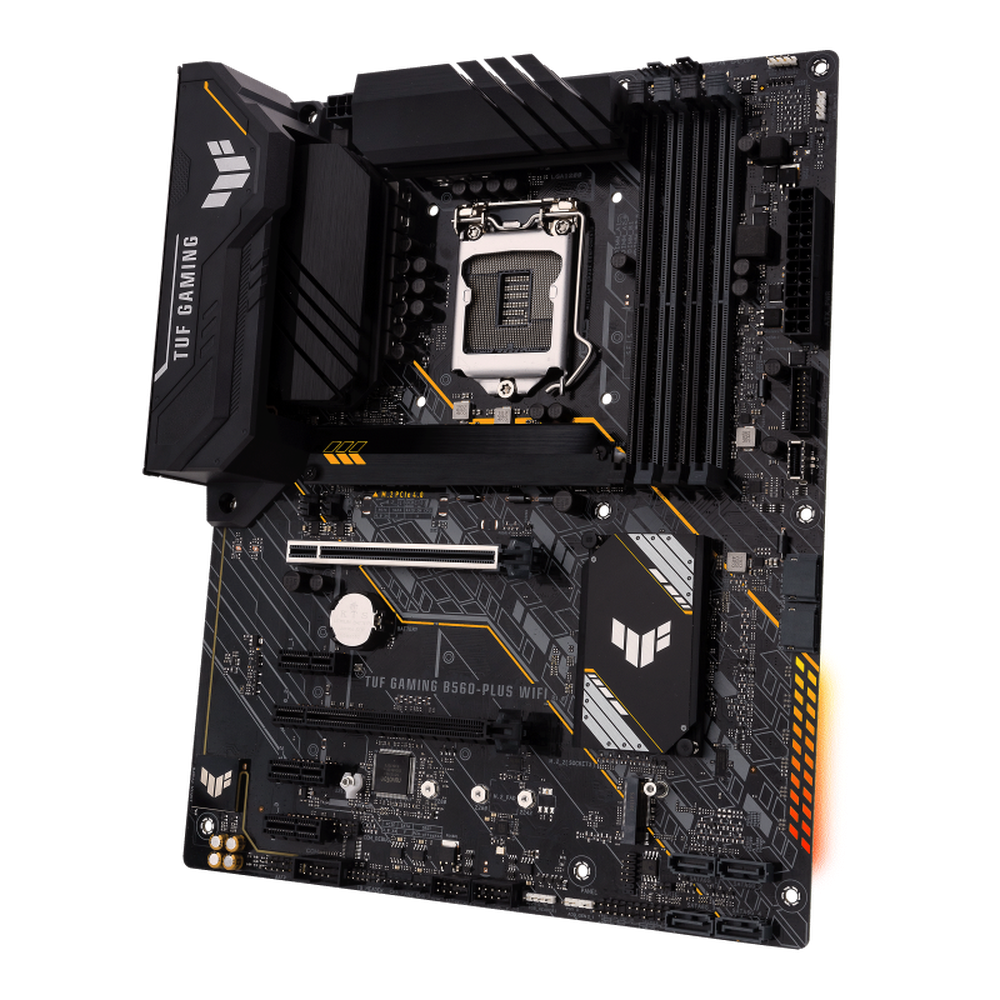

ASUS TUF GAMING B560-PLUS WIFI
Intel® B560 (LGA 1200) ATX motherboard, 8+1 DrMOS Power stages , PCIe 4.0 support, DDR4 5000 (OC), Dual M.2 slot with flexible heatsink, HDMI 2.0, DisplayPort 1.4, SATA 6Gbps, 2.5Gb Ethernet, Front USB Type-C®, USB 3.2 Gen 2 Type-C®, Thunderbolt™ 4 support, and Aura Sync RGB lighting
- Intel® LGA 1200 socket: Ready for 10th and 11th gen Intel® Core™ processors
- Enhanced power solution: 8+1 DrMOS power stages, 6-layer PCB , ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Flexible M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
- Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, front USB 3.2 Gen 1 Type-C®, Thunderbolt 4 support
- Made for online gaming: Intel Wi-Fi 6, Realtek 2.5Gb Ethernet, TUF LANGuard, and Turbo LAN technology
- Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Accessories | Cables: 2 x SATA 6Gb/s cables | Miscellaneous: 1 x ASUS Wi-Fi moving antennas 1 x M.2 Rubber Package(s) 1 x M.2 SSD screw package(s) 1 x TUF Gaming sticker | Installation Media: 1 x Support DVD | Documentation: 1 x TUF Certification card 1 x User manual |
| Specifications | Audio | Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" |
| Specifications | BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Specifications | Chipset | Intel® B560 Chipset |
| Specifications | Form Factor | ATX 30.5cm x 24.4cm |

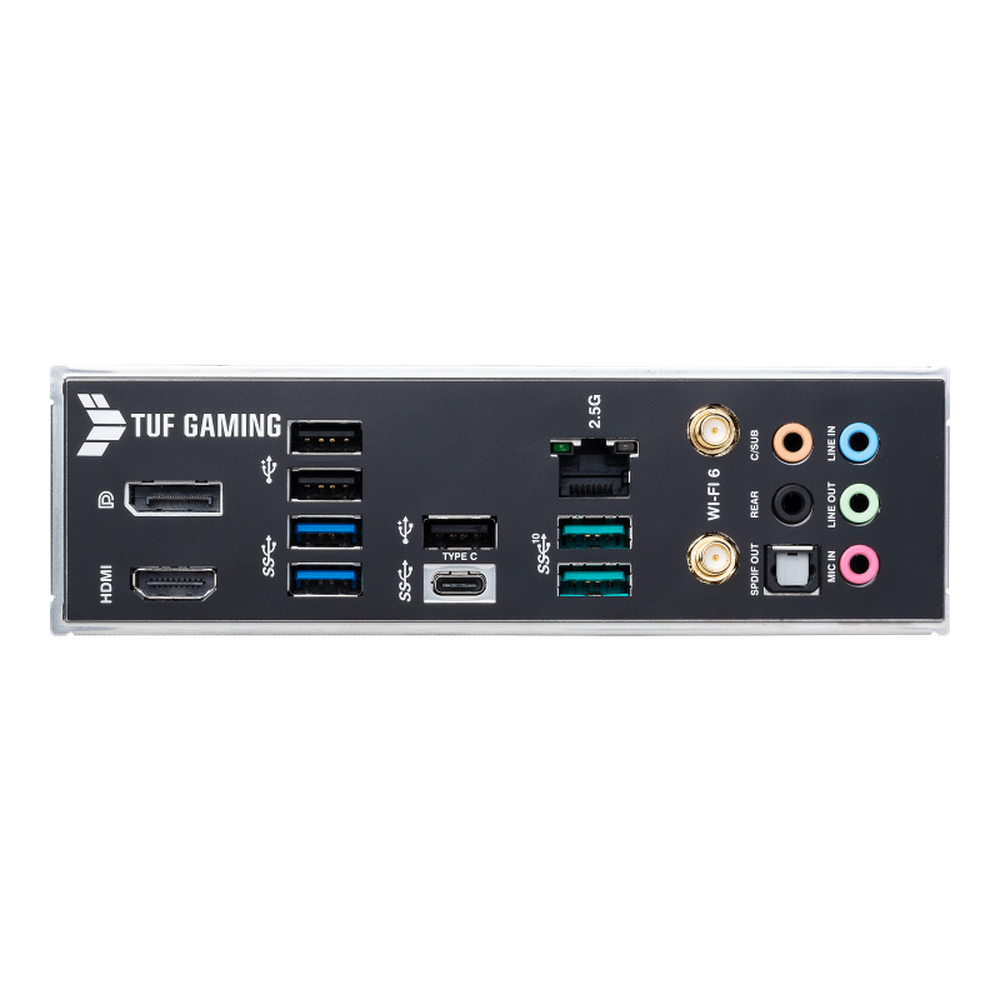

| Specifications | I/O Connectors | 2 x USB 3.2 Gen 2 ports (2 x Type-A) 3 x USB 3.2 Gen 1 ports (2 x Type-A + 1x Type-C®) 3 x USB 2.0 ports (3 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x ASUS Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Specifications | Integrated CPU Graphics | 1 x DisplayPort 1.4 1 x HDMI 1.4 / 2.0 |
| Specifications | LAN | 1 x Realtek 2.5Gb Ethernet |
| Specifications | Memory/Type/Bus/Max. | DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Specifications | Operating System | Windows® 10 64-bit |
| Specifications | PCI Slots | Intel® 11th &10th Gen Processors: 1 x PCIe 4.0/3.0 x16 slot(s)** - Intel® 11th processors support PCIe 4.0 x16 - Intel®10th processors support PCIe 3.0 x16 | Intel® B560 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode)* 3 x PCIe 3.0 x1 slots |
| Specifications | Processor Support | Intel® Socket LGA1200 for 11th Gen Intel® Core Processors & 10th Gen Intel® Core, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Specifications | Raid | |
| Specifications | RAM Type/Bus/Max. | DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Specifications | Socket | LGA1200 |
| Specifications | Storage Interface | Intel®11th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs | Intel® B560 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports |
| Specifications | Warranty | 3 Years |
| Specifications | Weight | |
| Specifications | Wireless & Bluetooth | Intel® Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.0 or later |
