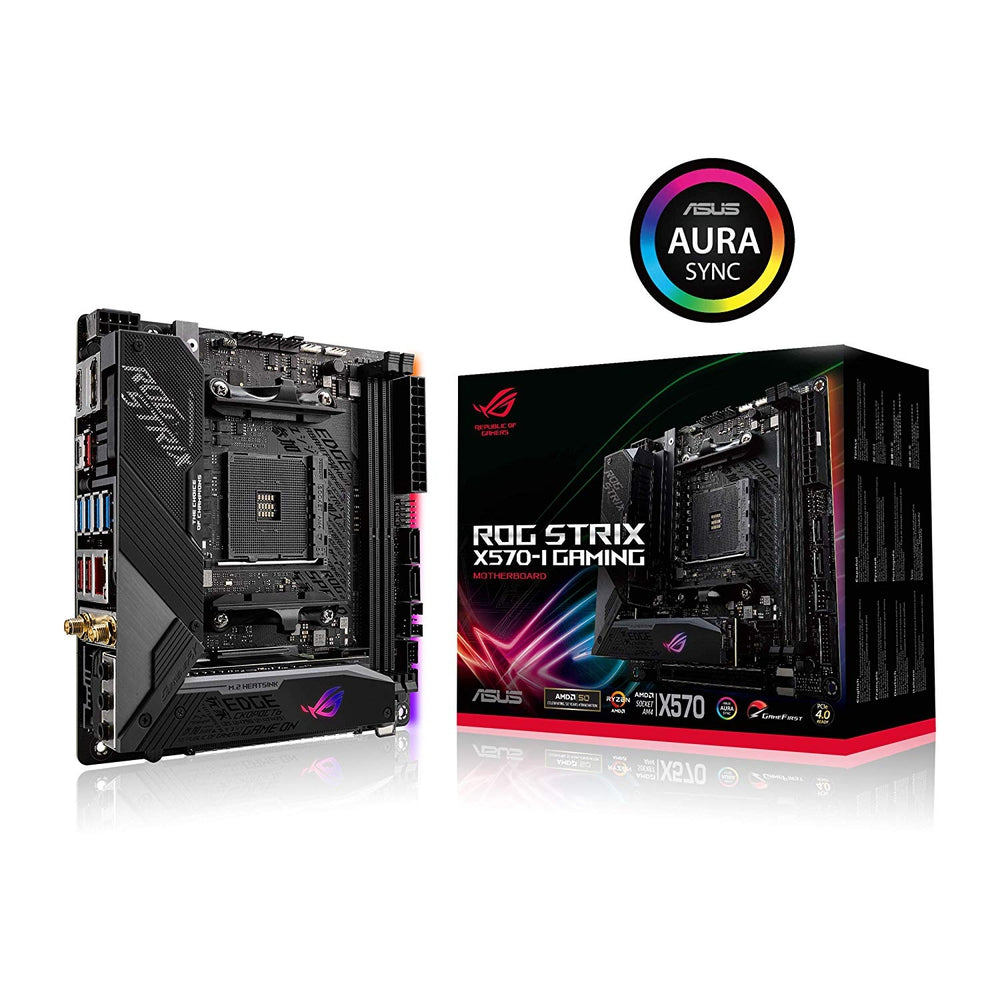

AMD X570 mini-ITX Gaming motherboard with PCIe 4.0, Aura Sync RGB, Intel Gigabit Ethernet, Wi-Fi 6 (802.11ax), M.2 Audio Combo Card, HDMI 2.0, DisplayPort 1.4, SATA 6Gb/s, and USB 3.2 Gen2.
- AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen™ processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen 2 and AMD StoreMI
- Aura Sync RGB: ASUS-exclusive Aura Sync RGB lighting, including RGB header and addressable Gen 2 header
- Optimal Power Solution: 8+2 power stages with a ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors
- Comprehensive cooling design: VRM and chipset heatsinks add mass to help absorb more heat and feature miniature fans, an embedded chipset heatpipe, an M.2 heatsink and an aluminum backplate with cyber-text pattern
- Gaming connectivity: Supports PCIe 4.0, HDMI 2.0 and DisplayPort 1.4 and features dual M.2 and USB 3.2 Type-A and Type-C connectors
- Gaming networking: Intel Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6 (802.11ax) with MU-MIMO support, and gateway teaming via GameFirst V
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles tailor made for your rig
- Gaming audio: High-fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action
- Gamer’s Guardian: ASUS SafeSlot and premium components for maximum endurance
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | SupremeFX 8-Channel High Definition Audio CODEC S1220A |
| Specifications | Chipset | X570 |
| Specifications | Form Factor | Mini ITX Form Factor |
| Specifications | I/O Connectors | 1x HS_FAN , 1x PCH_FAN , 1x AAFP connector , 1x Aura RGB Strip Header(s) , 1x Addressable Gen 2 header(s) , 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) , 1x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) , 2x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD) , 4x SATA 6Gb/s connector(s) , 1x CPU Fan connector(s) , 1x Chassis Fan connector(s) , 1x AIO_PUMP connector , 1x 24-pin EATX Power connector(s) , 1x 8-pin ATX 12V Power connector(s) , 1x Front panel audio connector(s) (AAFP) , 1x Thermal sensor connector(s) , 1x Clear CMOS jumper(s) , 1x System panel connector , 1x T_Sensor Connector , 1x Speaker connector |
| Specifications | Integrated CPU Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors |
| Specifications | LAN | Intel I211-AT |
| Specifications | Memory/Type/Bus/Max. | 2 x DIMM, Max. 64GB, DDR4, 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory |
| Specifications | PCI Slots | 1 x PCIe 4.0 x16 |
| Specifications | Processor Support | AMD AM4 Socket 3rd and 2nd AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors |
| Specifications | Raid | Support Raid 0, 1, 10 |
| Specifications | RAM Type/Bus/Max. | 2 x DIMM, Max. 64GB, DDR4, 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory |
| Specifications | Socket | AMD AM4 Socket |
| Specifications | Storage Interface | 2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD) |
| Specifications | Warranty | 3 Years |
| Specifications | Weight |
