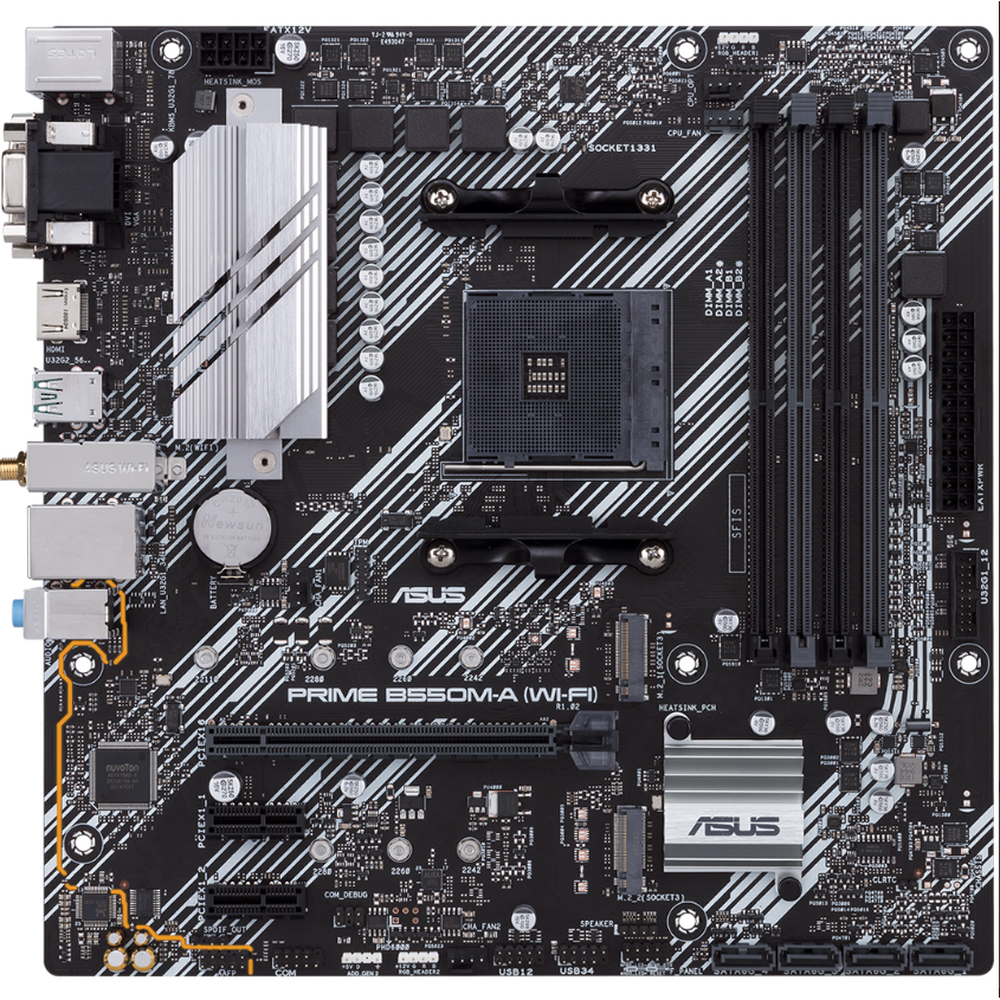

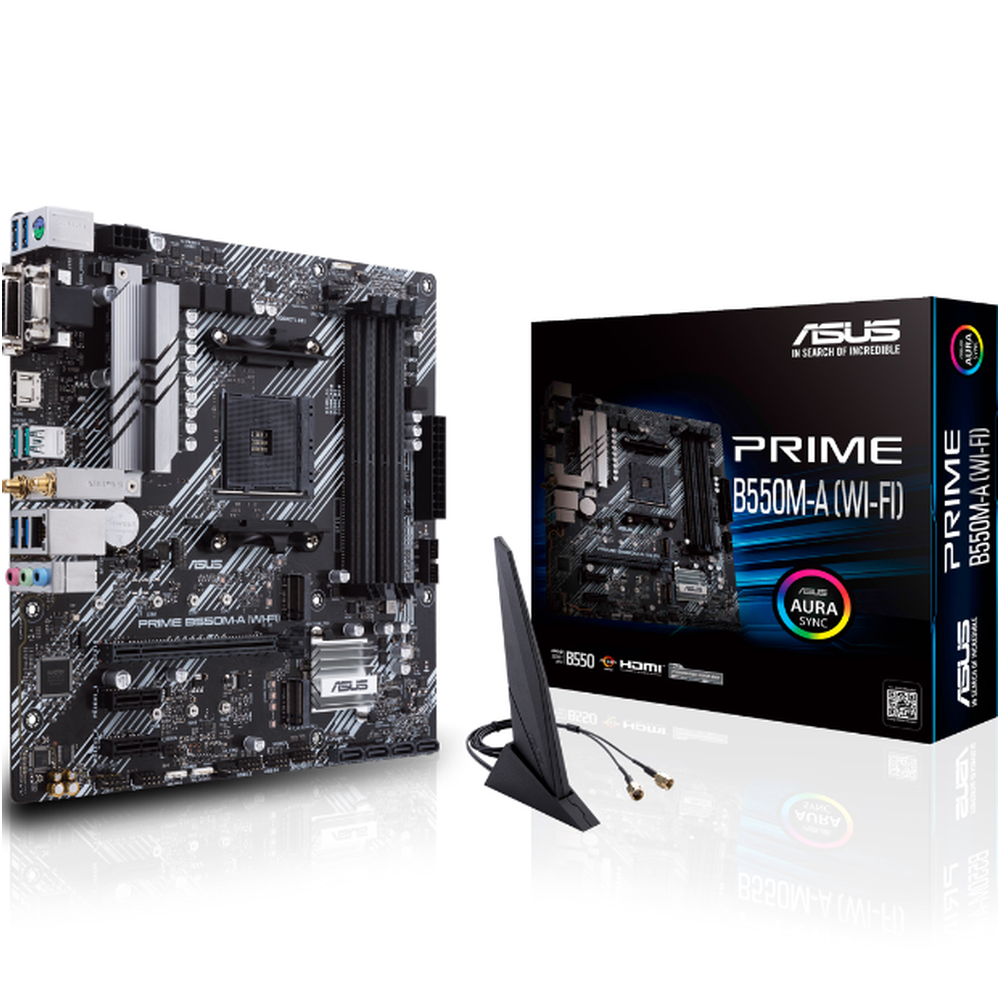

AMD B550 (Ryzen AM4) micro ATX motherboard with dual M.2, PCIe 4.0, Intel® WiFi 6, 1 Gb Ethernet, HDMI/D-Sub/DVI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, and Aura Sync RGB headers support
-
AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors
-
Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+
-
Ultrafast connectivity: Dual M.2, PCIe 4.0, Intel® WiFi 6, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A
- Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC |
| Specifications | Chipset | AMD B550 |
| Specifications | Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |

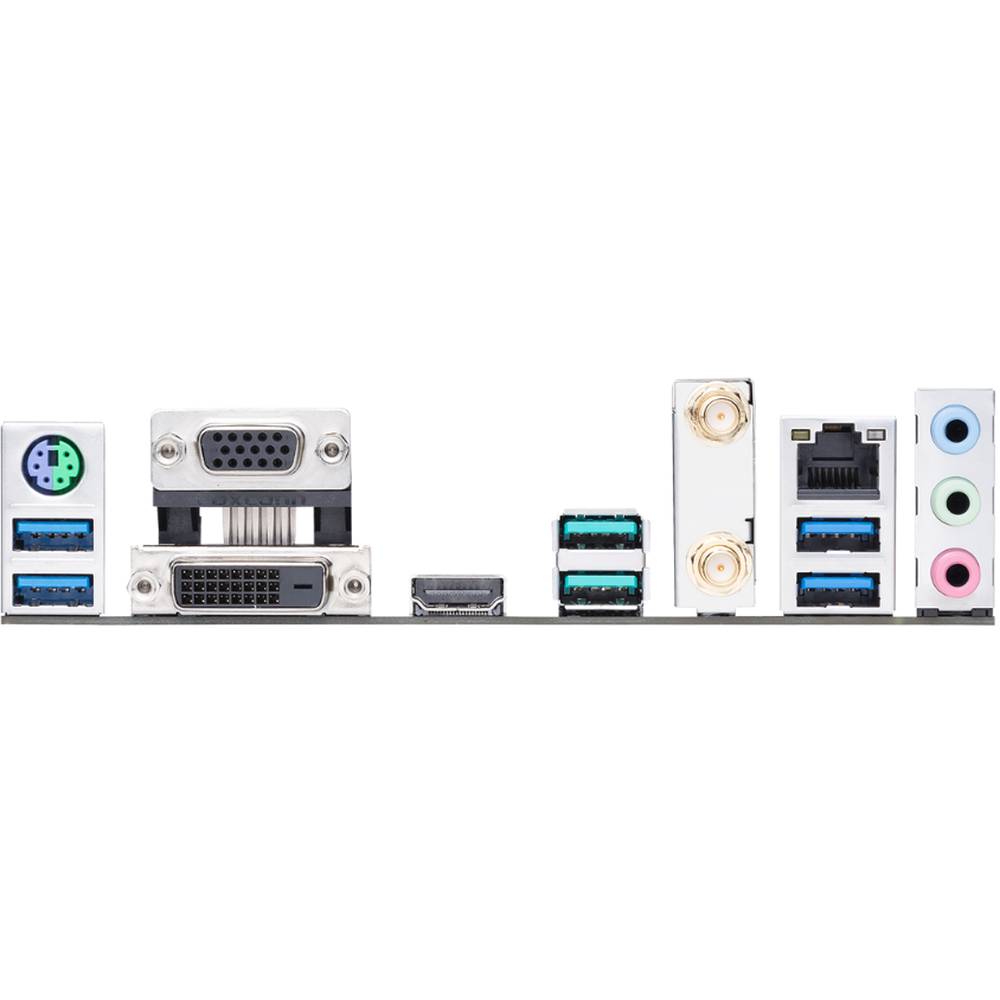

| Specifications | I/O Connectors | 1x PS/2 keyboard/mouse combo port(s) , 1x DVI-D , 1x D-Sub , 1x HDMI , 1x LAN (RJ45) port(s) , 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) , 4 x USB 3.2 Gen 1 (blue) Type-A , 3 x Audio jack(s) , 1x ASUS Wi-Fi Module |
| Specifications | Integrated CPU Graphics | 1 x D-Sub 1 x DVI-D 1 x HDMI 2.1(4K@60HZ) *Graphics specifications may vary between CPU types. |
| Specifications | LAN | Realtek RTL8111H 1Gb Ethernet |
| Specifications | Memory/Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory |
| Specifications | PCI Slots | 1 x PCIe 4.0 x16 (x16 mode) |
| Specifications | Processor Support | 3rd Gen AMD Ryzen Processors |
| Specifications | Raid | Support Raid 0, 1, 10 |
| Specifications | RAM Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory |
| Specifications | Socket | Build in AMD AM4 Socket 3rd Gen AMD Ryzen Processors |
| Specifications | Storage Interface | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports |
| Specifications | Warranty | 3 Years |
| Specifications | Weight |
