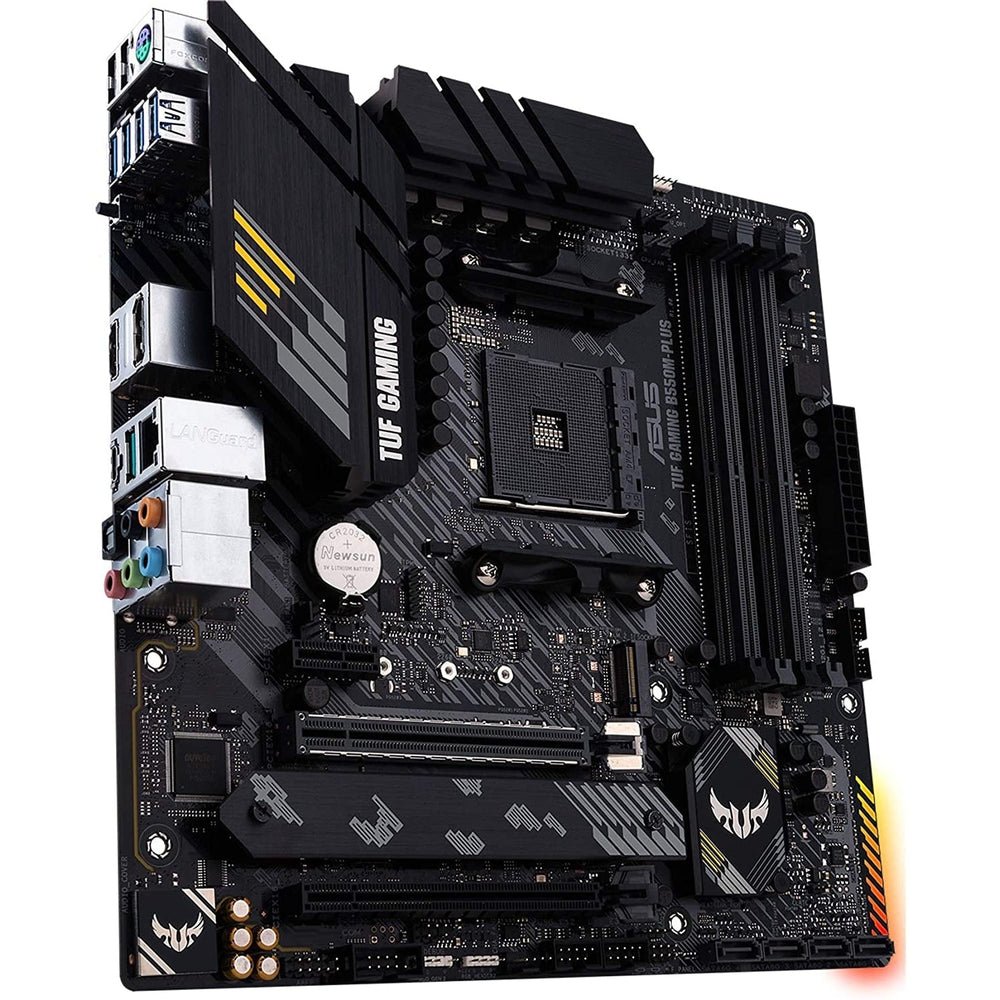

AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and Digi+ VRM for maximum durability
Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility
Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support
Made for online gaming: 2.5 Gb Ethernet, TUF LANGuard and TurboLAN technology
Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
AI noise-canceling microphone: Provides crystal-clear in-game voice communication
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC: Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback, Audio Feature : - Exclusive DTS Custom for GAMING Headsets, - Optical S/PDIF out port(s) at back panel, - Audio cover, - Audio Shielding, - Dedicated audio PCB layers, - Premium Japanese audio capacitors |

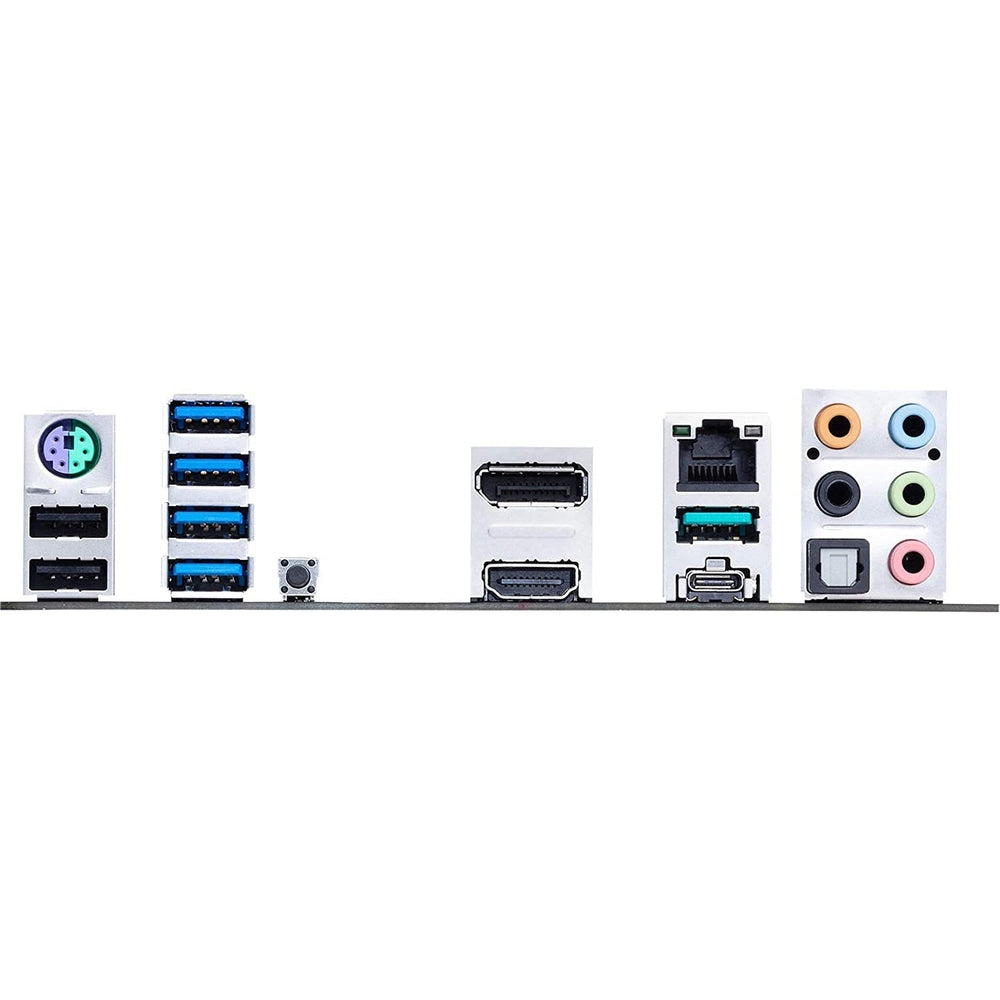

| Specifications | Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s), 1 x DisplayPort, 1 x HDMI, 1 x LAN (2.5G) port(s), 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®), 2 x USB 2.0, 4 x USB 3.2 Gen 1 (blue) (one port can be switched to USB BIOS FlashBack), 1 x Optical S/PDIF out, 5 x Audio jack(s), 1 x BIOS FlashBack Button(s) |
| Specifications | BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Specifications | Chipset | AMD B550 |
| Specifications | Dimensions | 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Specifications | Form Factor | mATX Form Factor |
| Specifications | Graphic | 1 x DisplayPort 1.2, 1 x HDMI 2.1(4K@60HZ) |
| Specifications | I/O Connectors | 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 2 x Chassis Fan connector(s), 2 x Aura RGB Strip Headers, 1 x Addressable Gen 2 header(s), 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode), 1 x SPI TPM header, 4 x SATA 6Gb/s connector(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin EATX 12V Power connectors, 1 x Front panel audio connector(s) (AAFP), 1 x Clear CMOS jumper(s), 1 x System panel connector, 1 x COM port header, 1 x Speaker connector |
| Specifications | Integrated CPU Graphics | 1 x DisplayPort 1.2, 1 x HDMI 2.1 |
| Specifications | LAN | Realtek RTL8125B 2.5Gb Ethernet TUF LANGuard |
| Specifications | Manageability | WOL by PXE |
| Specifications | Memory/Type/Bus/Max. | 3rd Gen AMD Ryzen Processors: 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory, 3rd Gen AMD Ryzen with Radeon Graphics Processors: 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory, Dual Channel Memory Architecture, ECC Memory (ECC mode) support varies by CPU. |
| Specifications | Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
| Specifications | PCI Slots | 3rd Gen AMD Ryzen Processors: 1 x PCIe 4.0 x16 (x16 mode), 3rd Gen AMD Ryzen with Radeon Graphics Processors, 1 x PCIe 3.0 x16 (x16 mode), AMD B550 Chipset: 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x1, * Support PCIe bifurcation for RAID on CPU function. |
| Specifications | Processor Support | AMD B550 |
| Specifications | Raid | Support Raid 0, 1, 10 |
| Specifications | RAM Type/Bus/Max. | 3rd Gen AMD Ryzen Processors: 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory, 3rd Gen AMD Ryzen with Radeon Graphics Processors: 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory, Dual Channel Memory Architecture, ECC Memory (ECC mode) support varies by CPU. |
| Specifications | Socket | AMD AM4 Socket for 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors |
| Specifications | Storage Interface | Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports, 3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support, 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support, AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support, 4 x SATA 6Gb/s port(s) |
| Specifications | USB Ports | Rear USB Port ( Total 8 ), 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®), 4 x USB 3.2 Gen 1 port(s)(4 x Type-A), 2 x USB 2.0 port(s)(2 x Type-A), Front USB Port ( Total 6 ), 2 x USB 3.2 Gen 1 port(s)(2 x Type-A), 4 x USB 2.0 port(s)(4 x Type-A) |
| Specifications | Warranty | 3 Years |
| Specifications | Weight |
