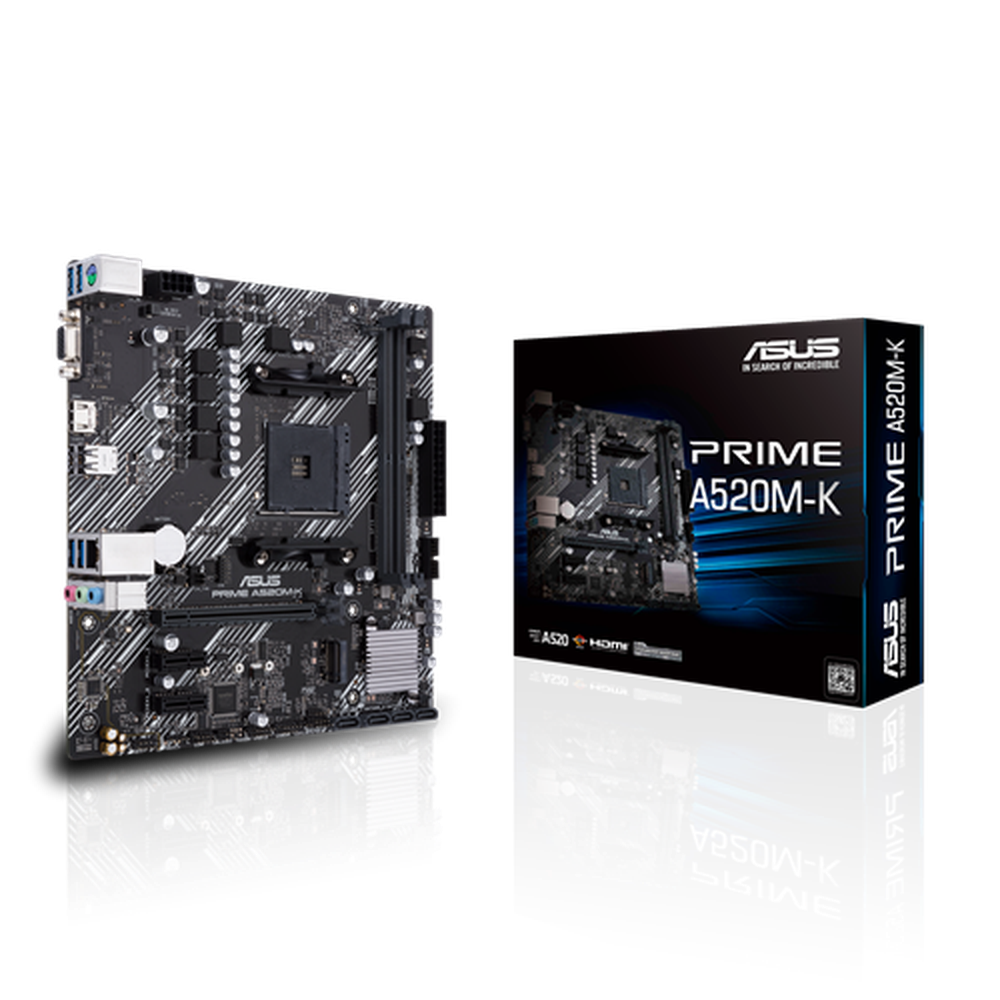

AMD A520 (Ryzen AM4) micro ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Type-A
· AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
· Comprehensive cooling: PCH heatsink and Fan Xpert
· Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
· 5X Protection III: Multiple hardware safeguards for all-around system protection
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Audio | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC, Audio Shielding, Dedicated audio PCB layers |
| Specifications | Chipset | AMD A520 |
| Specifications | Form Factor | 22.6 cm x 22.1 cm |
| Specifications | I/O Connectors | Back I/O Ports; PS/2 keyboard/mouse combo port(s), D-Sub, HDMI, LAN (RJ45) port(s), 4x USB 3.2 Gen 1 (blue) Type-A, 2 x USB 2.0, 3 x Audio jack(s) |
| Specifications | Integrated CPU Graphics | D-Sub, HDMI 2.1(4K@60HZ) |
| Specifications | LAN | Realtek RTL8111H 1Gb Ethernet, ASUS LANGuard |
| Specifications | Memory/Type/Bus/Max. | 2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor. |
| Specifications | PCI Slots | AMD Ryzen;PCIe 3.0 x16 (x16 mode), AMD A520;PCIe 3.0 x1 |
| Specifications | Processor Support | AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Specifications | Raid | Support Raid 0, 1, 10 |
| Specifications | RAM Type/Bus/Max. | 2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor. |
| Specifications | Socket | AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Specifications | Storage Interface | otal supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports |
| Specifications | Warranty | 3 Years |
| Specifications | Weight |
