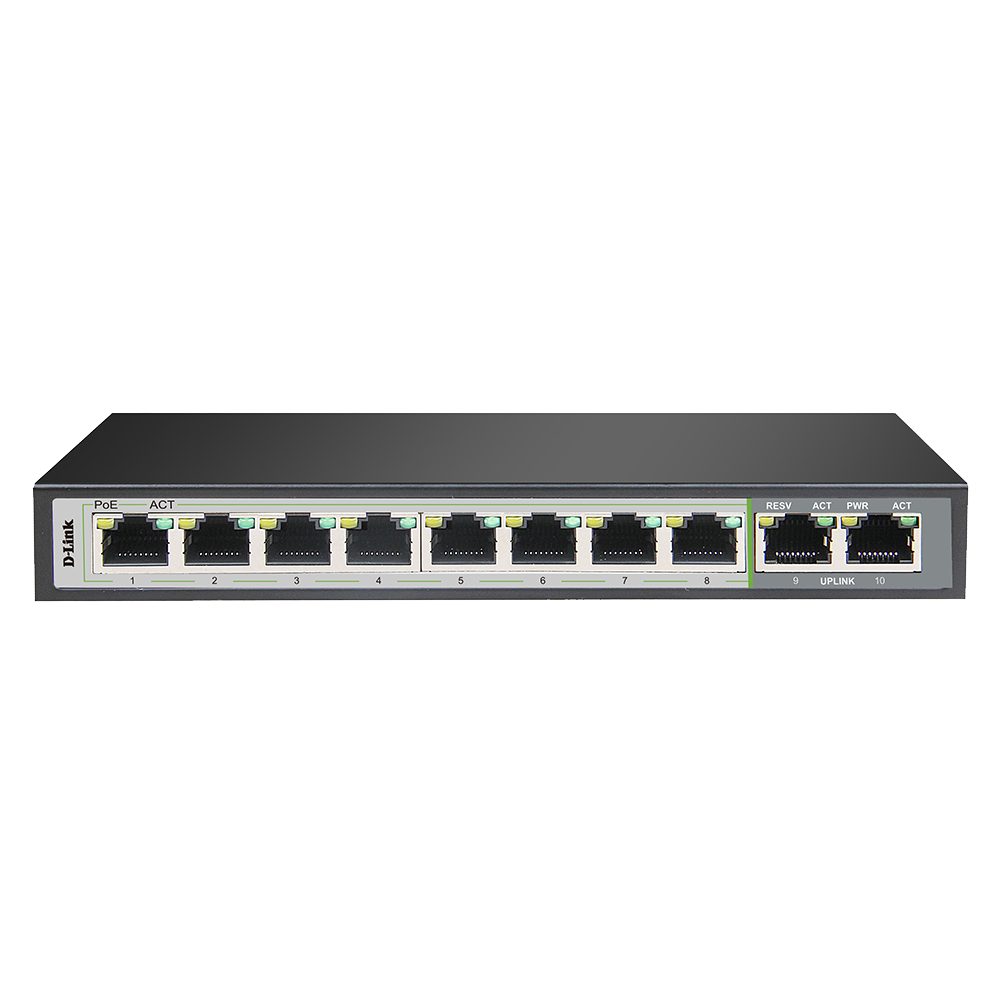

10-Port Gigabit PoE Switch with 8 Long Reach PoE Ports and 2 Uplink Ports
Robust and cost-effective PoE solution to provide power for your PoE powered devices such as IP cameras, CCTV, VoIP, Wi-Fi Access Points, etc.Equipped with PoE extend technology, the DGS-F1010P-E have the capability to supply 802.3af/at PoE and data connectivity on cables up to 250m long.
6KV Surge Protection
D-Link DGS-F1010P-E switch is enhanced with 6KV surge protection. This effectively protects the switch against sudden electrical surges caused by events such as lightning strikes or unstable electrical current. Built-in 6 kV surge protection significantly reduces the chances of equipment being damaged from electrical surges, and effectively lowers maintenance costs by minimizing the need for expensive equipment repairs or replacement.
Enhanced with VLAN Function
With a flick of button you can isolate switch ports from each other, but still allowing the devices to communicate via the uplink ports. This feature not only adds security but can also effectively suppress network storms and improve network performance.
Enhanced with QoS
The DGS-1010P-E switch performance is enhanced with QoS (Quality of Service) feature to ensure that critical network services such as IP surveillance, VoIP, IPTV are always given high priority. This feature makes the switch a perfect solution for IP Camera/CCTV applications.
Intelligent Detection
With AI PoE feature enabled the switch can automatically detect an unresponsive PoE device and reboot the devices in order to recover it.
- 8 x Gigabit PoE+ Ports
- 2 x Gigabit Uplink Ports
- PoE+ support - up to 30W per port
- Long Reach PoE support - up to 250m
- Smart Features: Extend, VLAN, QoS and PoE Reset
- Lightning protection built-in (6kV)
- PoE Budget 96 Watts
- Plug & Play Installation
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
| GroupName | Name | Value |
|---|---|---|
| Specifications | Category | Switches |
| Specifications | Compact Design for Home and Office Use | Yes |
| Specifications | Design | Metal|Fanless |
| Specifications | Device Type | Unmanaged Switch |
| Specifications | Dimensions | 184 x 94 x 27mm |
| Specifications | EMC | CE Class B, FCC Part 15,Class B, VCCI Class B, C-Tick |
| Specifications | Environmental | Operating Temperature: 0°~40°C Storage Temperature: -10°C~70°C, Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing |
| Specifications | Fanless Design for Silent Operation | Yes |
| Specifications | Hardware Requirement | PoE|250m Long Reach PoE |
| Specifications | Housing | Metal |
| Specifications | LEDs Indicator | Power, LINK/ACT,POE |
| Specifications | License Pricing | N/A |
| Specifications | License Quantity | N/A |
| Specifications | Lightning Protection | 6KV |
| Specifications | Manufacturer's Part Number | DGS-F1010P-E |
| Specifications | Performance | Bandwidth: 20 Gbps (no block), Network delay (100 to 100M bps): maximum 20 µs (using 64byte packet), Frame filtering and transmission rate, 10M: 14,800pps, 100M: 148,800pps, 1000M: 1488,00pps |
| Specifications | Platform Supported | N/A |
| Specifications | POE Pin | 1/2(+) 3/6(-) |
| Specifications | PoE ports | 8 Ports |
| Specifications | Ports | 10 ports |
| Specifications | Power | 120W |
| Specifications | Power Supply | External |
| Specifications | Product | 10-Port Gigabit PoE Switch with 8 Long Reach PoE Ports and 2 Uplink Ports |
| Specifications | Quick, Simple Plug-and-Play Installation | Yes |
| Specifications | Speed | Gigabit |
| Specifications | System Requirement | N/A |
| Specifications | Warranty | 3-Year Limited Warranty |
| Specifications | Weight | 1.05kg |
| Specifications | Wireless | No |
